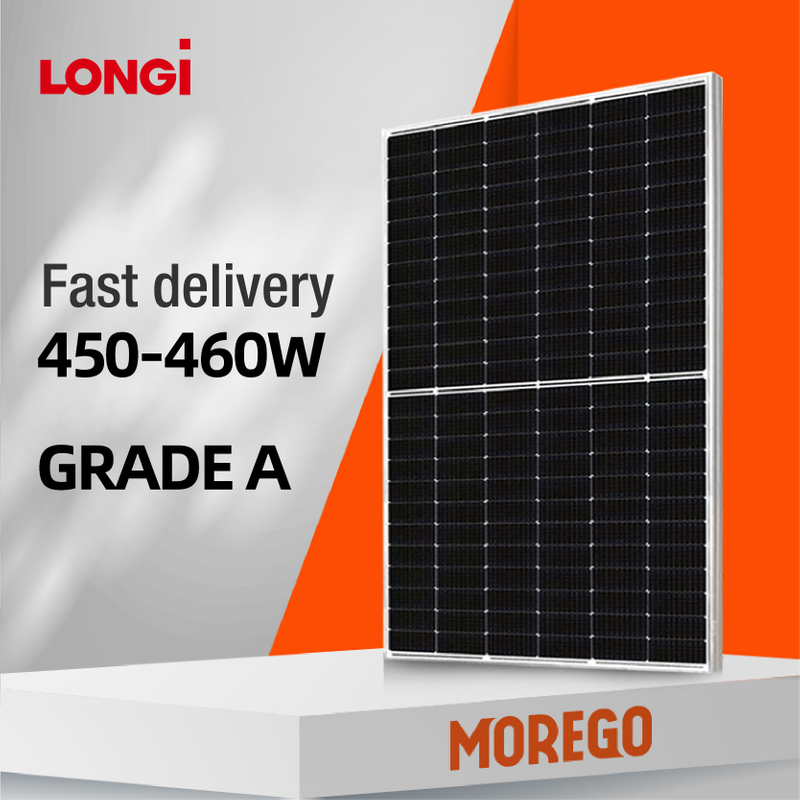

LR4-72HIH 440-460M, LR4-72HPH 440-460M
LONGI
Availability: | |
---|---|
MECHANICAL DATA | |||
Module Dimensions | 2094*1038*35mm | ||
Weight | 23.3kg | ||
Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass | ||
Junction-Box | IP68, three diodes | ||
Cables | 4.0mm² , 300mm in length | ||
Cell Orientation | 144cells(6*24) |
Model Number | LR4-72HPH-445M | LR4-72HPH-450M | LR4-72HPH-455M | LR4-72HPH-460M |
Rated Power in Watts-Pmax(Wp) | 445 | 450 | 455 | 460 |
Open Circuit Voltage-Voc(V) | 49.1 | 49.3 | 49.5 | 49.7 |
Short Circuit Current-Isc(A) | 11.53 | 11.60 | 11.66 | 11.73 |
Maximum Power Voltage-Vmpp(V) | 41.3 | 41.5 | 41.7 | 41.9 |
Maximum Power Current-Impp(A) | 10.78 | 10.85 | 10.92 | 10.98 |
Module Efficiency (%) | 20.5 | 20.7 | 20.9 | 21.2 |
MECHANICAL DATA | |||
Module Dimensions | 2094*1038*35mm | ||
Weight | 23.3kg | ||
Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass | ||
Junction-Box | IP68, three diodes | ||
Cables | 4.0mm² , 300mm in length | ||
Cell Orientation | 144cells(6*24) |
Model Number | LR4-72HPH-445M | LR4-72HPH-450M | LR4-72HPH-455M | LR4-72HPH-460M |
Rated Power in Watts-Pmax(Wp) | 445 | 450 | 455 | 460 |
Open Circuit Voltage-Voc(V) | 49.1 | 49.3 | 49.5 | 49.7 |
Short Circuit Current-Isc(A) | 11.53 | 11.60 | 11.66 | 11.73 |
Maximum Power Voltage-Vmpp(V) | 41.3 | 41.5 | 41.7 | 41.9 |
Maximum Power Current-Impp(A) | 10.78 | 10.85 | 10.92 | 10.98 |
Module Efficiency (%) | 20.5 | 20.7 | 20.9 | 21.2 |
