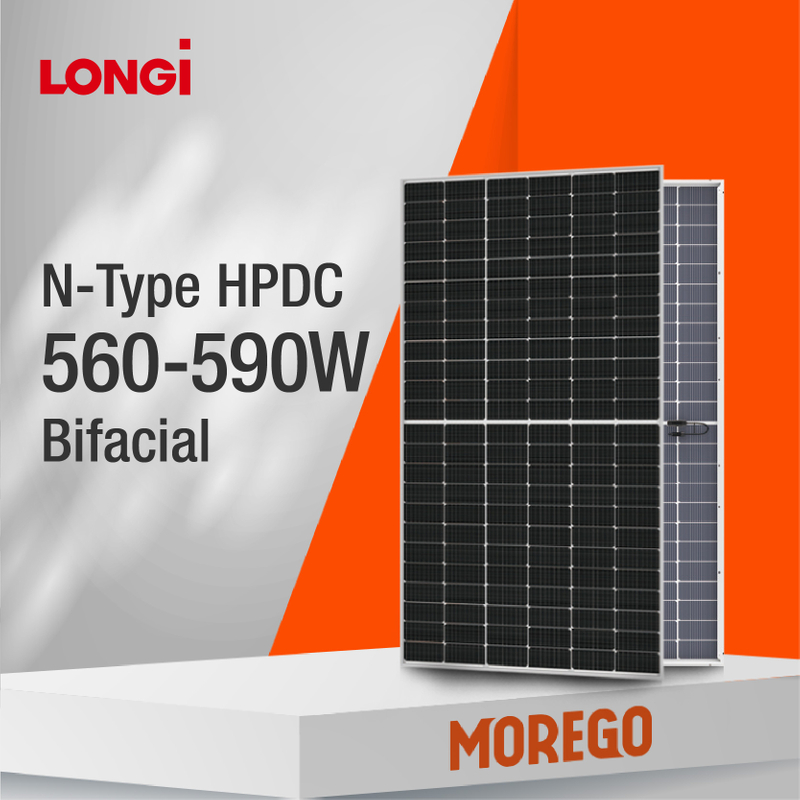

LR5-72HGD 570-590M
LONGI
Availability: | |
---|---|
MECHANICAL DATA | |||
Module Dimensions | 2278*1134*30mm | ||
Weight | 31.8kg | ||
Glass | Dual glass, 2.0+2.0mm heat strenghthened glass | ||
Junction-Box | IP68, three diodes | ||
Cables | 4.0mm² , 300mm in length | ||
Cell Orientation | 144cells(6*24) |
ELECTRICAL CHARACTERISTICS | ||||
Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w) | ||||
Model | LR5-72HGD-575M | LR5-72HGD-580M | LR5-72HGD-585M | LR5-72HGD-590M |
Max. Power | 575W | 580W | 585W | 590W |
Open Circuit Voltage | 51.30V | 51.41V | 51.52V | 51.63V |
Short Circuit Current | 14.14A | 14.22A | 14.30A | 14.38A |
Max. Power Voltage | 43.11V | 43.22V | 43.33V | 43.44V |
Max. Power Current | 13.34A | 13.42A | 13.51A | 13.59A |
Efficiency² | 22.3% | 22.5% | 22.6% | 22.8% |
MECHANICAL DATA | |||
Module Dimensions | 2278*1134*30mm | ||
Weight | 31.8kg | ||
Glass | Dual glass, 2.0+2.0mm heat strenghthened glass | ||
Junction-Box | IP68, three diodes | ||
Cables | 4.0mm² , 300mm in length | ||
Cell Orientation | 144cells(6*24) |
ELECTRICAL CHARACTERISTICS | ||||
Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w) | ||||
Model | LR5-72HGD-575M | LR5-72HGD-580M | LR5-72HGD-585M | LR5-72HGD-590M |
Max. Power | 575W | 580W | 585W | 590W |
Open Circuit Voltage | 51.30V | 51.41V | 51.52V | 51.63V |
Short Circuit Current | 14.14A | 14.22A | 14.30A | 14.38A |
Max. Power Voltage | 43.11V | 43.22V | 43.33V | 43.44V |
Max. Power Current | 13.34A | 13.42A | 13.51A | 13.59A |
Efficiency² | 22.3% | 22.5% | 22.6% | 22.8% |
