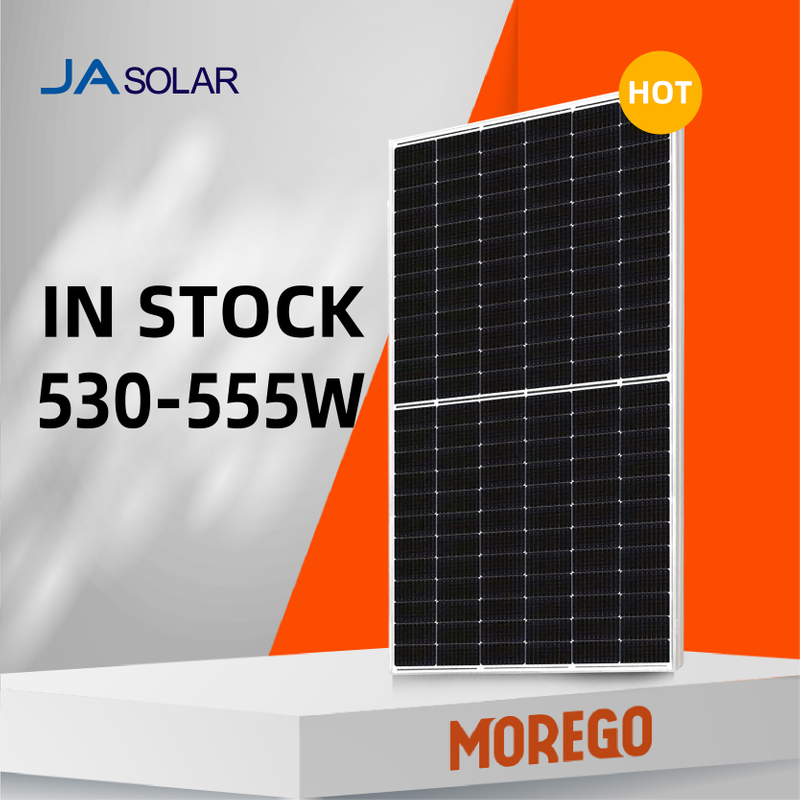

JAM72S30 530-555/MR
JA solar
| MECHANICAL SPECIFICATION | |||
| Format | 2279mm x 1134mm x 35mm | ||
| Weight | 28.6kg±3% | ||
| Cell | 144(6 x 24) monocrystalline cells | ||
| Junction Box | IP68, 3 diodes | ||
| Cable | 4mm2, 12 AWG | ||
| ELECTRICAL CHARACTERISTICS | |||||
| Minimum performance at standard test conditions,stc1 (power tolerance -0~+5w) | |||||
| Model | / | 535W | 540W | 545W | 550W |
| Open Circuit Voltage | Voc | 49.45V | 49.60V | 49.75V | 49.90V |
| Short Circuit Current | Isc | 13.79A | 13.86A | 13.93A | 14.00A |
| Max. Power Voltage | Vmp | 41.47V | 41.64V | 41.80V | 41.96V |
| Max. Power Current | Imp | 12.90A | 12.94A | 13.04A | 13.11A |
| Efficiency² | η | 20.7% | 20.9% | 21.1% | 21.3% |
| MECHANICAL SPECIFICATION | |||
| Format | 2279mm x 1134mm x 35mm | ||
| Weight | 28.6kg±3% | ||
| Cell | 144(6 x 24) monocrystalline cells | ||
| Junction Box | IP68, 3 diodes | ||
| Cable | 4mm2, 12 AWG | ||
| ELECTRICAL CHARACTERISTICS | |||||
| Minimum performance at standard test conditions,stc1 (power tolerance -0~+5w) | |||||
| Model | / | 535W | 540W | 545W | 550W |
| Open Circuit Voltage | Voc | 49.45V | 49.60V | 49.75V | 49.90V |
| Short Circuit Current | Isc | 13.79A | 13.86A | 13.93A | 14.00A |
| Max. Power Voltage | Vmp | 41.47V | 41.64V | 41.80V | 41.96V |
| Max. Power Current | Imp | 12.90A | 12.94A | 13.04A | 13.11A |
| Efficiency² | η | 20.7% | 20.9% | 21.1% | 21.3% |
