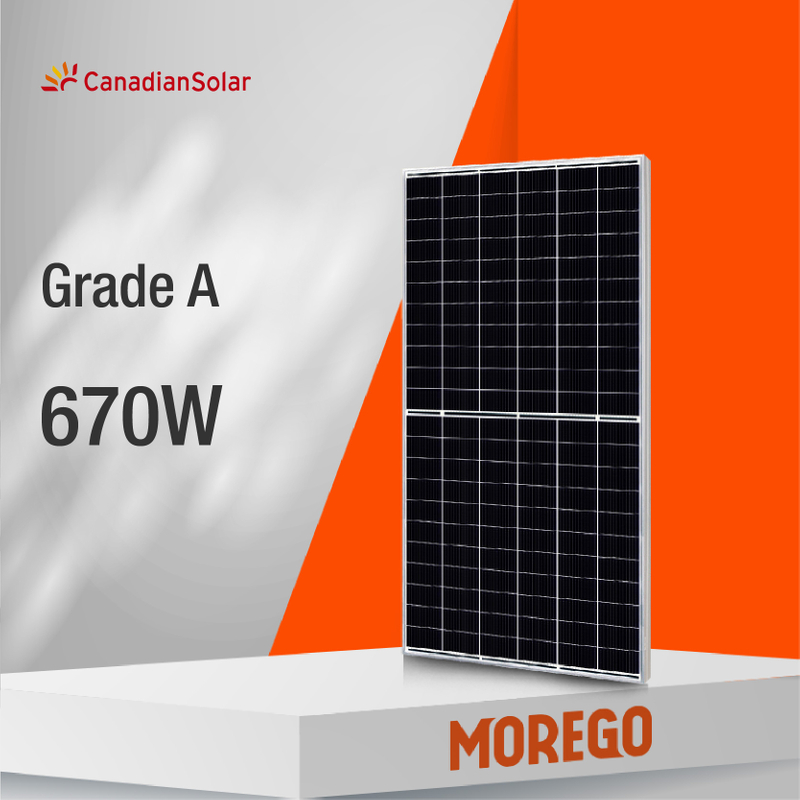

CS7N-640-675MS
Canadian solar
Availability: | |
---|---|
MECHANICAL SPECIFICATION | |||
Format | 2384 ˣ 1303 ˣ 35 mm | ||
Weight | 34.4kg±5% | ||
Cell | 132 monocrystalline PERC half cell,210 mm | ||
Junction Box | Protection class IP67,with bypass diodes | ||
Cable | 4mm² Solar cable | ||
Connector | MC4 Compatible |
ELECTRICAL DATA | STC | ||||||
CS7N | 645MS | 650MS | 655MS | 660MS | 665MS | 670MS |
Nominal Max. Power (Pmax) | 645 W | 650 W | 655 W | 660 W | 665 W | 670 W |
Opt. Operating Voltage (Vmp) | 37.7 V | 37.9 V | 38.1 V | 38.3 V | 38.5 V | 38.7 V |
Opt. Operating Current (Imp) | 17.11 A | 17.16 A | 17.20 A | 17.24 A | 17.28 A | 17.32 A |
Open Circuit Voltage (Voc) | 44.8 V | 45.0 V | 45.2 V | 45.4 V | 45.6 V | 45.8 V |
Short Circuit Current (Isc) | 18.35 A | 18.39 A | 18.43 A | 18.47 A | 18.51 A | 18.55 A |
Module Efficiency | 20.80% | 20.90% | 21.10% | 21.20% | 21.40% | 21.60% |
MECHANICAL SPECIFICATION | |||
Format | 2384 ˣ 1303 ˣ 35 mm | ||
Weight | 34.4kg±5% | ||
Cell | 132 monocrystalline PERC half cell,210 mm | ||
Junction Box | Protection class IP67,with bypass diodes | ||
Cable | 4mm² Solar cable | ||
Connector | MC4 Compatible |
ELECTRICAL DATA | STC | ||||||
CS7N | 645MS | 650MS | 655MS | 660MS | 665MS | 670MS |
Nominal Max. Power (Pmax) | 645 W | 650 W | 655 W | 660 W | 665 W | 670 W |
Opt. Operating Voltage (Vmp) | 37.7 V | 37.9 V | 38.1 V | 38.3 V | 38.5 V | 38.7 V |
Opt. Operating Current (Imp) | 17.11 A | 17.16 A | 17.20 A | 17.24 A | 17.28 A | 17.32 A |
Open Circuit Voltage (Voc) | 44.8 V | 45.0 V | 45.2 V | 45.4 V | 45.6 V | 45.8 V |
Short Circuit Current (Isc) | 18.35 A | 18.39 A | 18.43 A | 18.47 A | 18.51 A | 18.55 A |
Module Efficiency | 20.80% | 20.90% | 21.10% | 21.20% | 21.40% | 21.60% |
