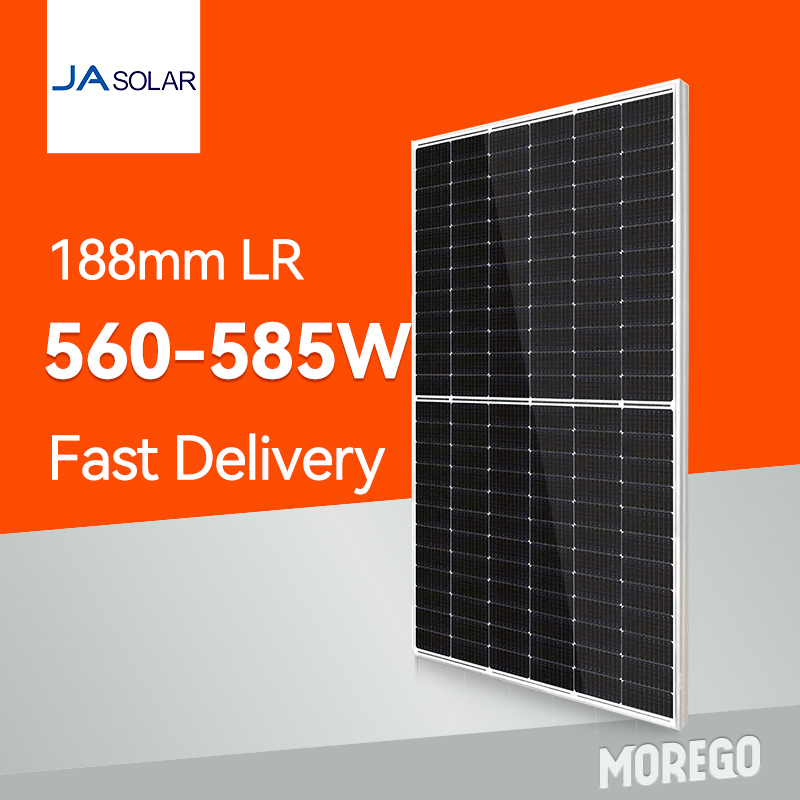

JA Solar 182mm Higher Output Power 585W 580W 575W Solar Panels

loading

Share to:
Overview

Quick Details
Brand Name: JA solar
Model Number: JAM72S30 560-585LR
Type: PERC, Half cell solar panel
Size: 2333mm x 1134mm x 30mm
Panel Efficiency: 22.1%
Weight: 31.8kg
Connector: MC4-EVO2
Certificate: CE / TUV / ISO
Warranty: 12 years product warranty, 30 year linear warranty
Junction Box: IP68, 3 diodes
Packing: 36pcs per pallet
Price: $ 0.18 / Watt
  • JAM72S30 560-580/LR

  • JA solar

Availability:


JA solar panel 580W

Solar Panel 详情页-JA-02

JA solar panel 560w


MECHANICAL SPECIFICATION
Format
2333mm x 1134mm x 35mm
Weight
28kg±3%
Cell
144(6 x 24) monocrystalline cells
Junction Box
IP68, 3 diodes
Cable
4mm2, 12 AWG
ELECTRICAL CHARACTERISTICS
minimum performance at standard test conditions,stc1 (power tolerance -0~+5w)
Model

570W
575W
580W
585W
Open Circuit Voltage
Voc
50.68V
50.86V
50.04V
50.22V
Short Circuit Current
Isc
14.37A
14.44A
14.50A
14.56A
Max. Power Voltage
Vmp
41.87V
42.05V
42.24V
42.42V
Max. Power Current
Imp
13.62A
13.67A
13.73A
13.79A
Efficiency²
η
21.5%
21.7%
21.9%
22.1%


JA solar panel 555wSolar Panel 详情页-JA-06Solar Panel 详情页-JA-07Solar Panel 详情页-JA-08
