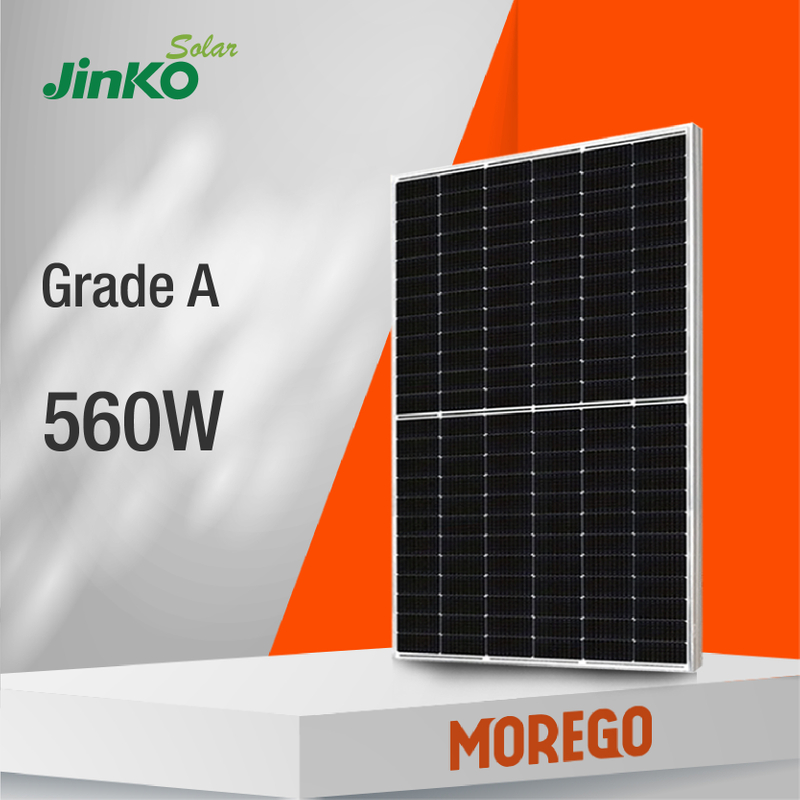

Jinko Solar Tiger Pro 72HC Mono Facial Module 545W 550W 555W 560W PV Solar Panels

loading

Share to:
Overview

Quick Details
Brand Name: Trina solar
Model Number: JKM530-560N-72HL4-V
Type: N-type solar panel
Size: 2278mm x 1134mm x 30mm
Panel Efficiency: 22.26%-22.65%
Weight: 28kg
Connector: PV Compatible Connector
Certificate: CE / TUV / ISO
Warranty: 12 years product warranty, 25 year linear warranty
Junction Box: IP68, 3 diodes
Price: $ 0.18 / Watt
  • JKM530-560N-72HL4-V

  • Jinko solar

Availability:

MIC新店-详情页-Jinko-01MIC新店-详情页-Jinko-02MIC新店-详情页-Trina solar-03



MIC新店-详情页-Jinko-04

MECHANICAL SPECIFICATION
Module Dimensions
2278mm x 1134mm x 30mm
Weight
28kg±3%
Cell
2 x 72 monocrystalline cells
Junction Box
IP68 Rated
Cable
TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length


ELECTRICAL CHARACTERISTICS
Minimum performance at standard test conditions,stc1 (power tolerance -0~+5w)
Model

JKM550N-72HL4-V
JKM555N-72HL4-V
JKM560N-72HL4-V
Max. Power
Pmax
550W
555W
560W
Open Circuit Voltage
Voc
49.62V
49.72V
49.82V
Short Circuit Current
Isc
14.03A
14.12A
14.21A
Max. Power Voltage
Vmp
40.90V
40.99V
41.09V
Max. Power Current
Imp
13.45A
13.54A
13.63A
Efficiency²
η
21.29%
21.48%
21.68%

MIC新店-详情页-Jinko-06


MIC新店-详情页-Jinko-07

MIC新店-详情页-Trina solar-08
