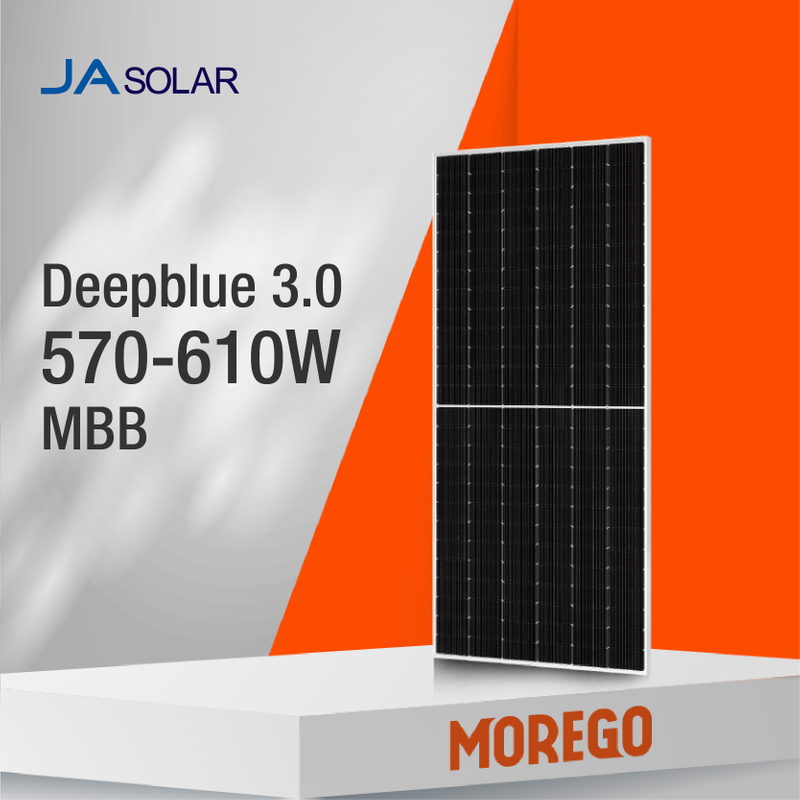

JA Solar Deepblue 3.0 JAM78S30 GR MBB Solar Cell Panel 600W 610W 590W 595W 580W PV Power Panels

loading

Share to:
Overview

Quick Details
Brand Name: JA solar
Model Number: JAM78S30 570-610/GR
Type: N-type, TOPCon, Half cell solar panel
Size: 2465*1134*35mm
Panel Efficiency: 21.8%
Weight: 30.5kg
Connector: MC4-EVO2
Certificate: CE / TUV / ISO
Warranty: 12 years product warranty, 30 year linear warranty
Junction Box: IP68, 3 diodes
Packing: 31pcs per pallet, 496pcs per 40'HQ
Price: $ 0.18 / Watt

  • JAM78S30 570-610/GR

  • JA solar

Availability:

JA solar panel-570-610W-01Solar Panel 详情页-JA-02



JA solar panel-570-610W-04

MECHANICAL SPECIFICATION
Format
2465mm x 1134mm x 35mm
Weight
20.5kg±3%
Cell
156(6 x 26) monocrystalline cells
Junction Box
IP68, 3 diodes
Packaging
31pcs per pallet, 496pcs per 40'HQ


ELECTRICAL CHARACTERISTICS
minimum performance at standard test conditions,stc1 (power tolerance -0~+5w)
Model

595W
600W
605W
610W
Open Circuit Voltage
Voc
53.40V
53.50V
53.61V
53.73V
Short Circuit Current
Isc
13.98A
14.03A
14.08A
14.13A
Max. Power Voltage
Vmp
45.05V
45.30V
45.53V
45.77V
Max. Power Current
Imp
13.21A
13.25A
13.29A
13.33A
Efficiency²
η
21.3%
21.5%
21.6%
21.8%

JA solar panel 555wSolar Panel 详情页-JA-06Solar Panel 详情页-JA-07Solar Panel 详情页-JA-08
