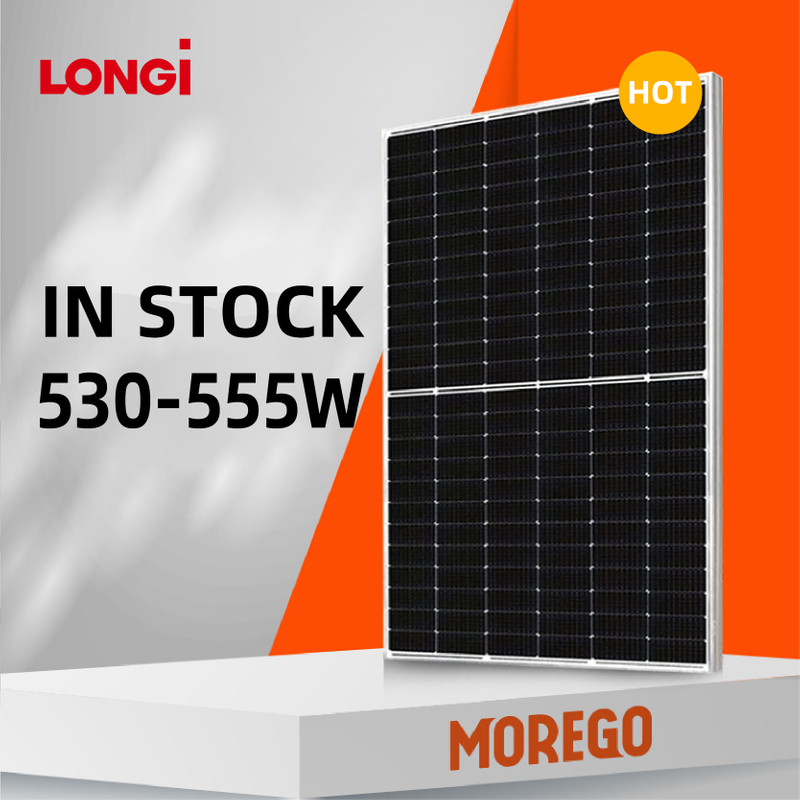

Longi Solar Mono Crystalline Half Cell Photovoltaic Solar Panels 560W 555W 550W 545W 540W

loading

Share to:
Moregosolar is the Official Authorized Distributor of Longi solar.
Overview

Quick Details
Brand Name: LONGI Solar
Model Number: LR5-72HPH 525~560M
Type: PERC, Half Cell, Half cell solar panel
Size: 2256*1133*35mm
Panel Efficiency: 20.0%-20.9%
Weight: 25.1kg
Solar cell: 182mm*182mm
Connector: PV Compatible Connector
Certificate: CE / TUV / ISO
Warranty: 12 years product warranty, 25 year linear warranty
Junction Box: IP68, 3 diodes
Packing: 30pcs per pallet
OEM Order: Acceptable

Price: $ 0.3 / Watt
  • LR5-72HPH 530-550M

  • LONGI

Availability:

MIC新店-详情页-01MIC新店-详情页-03MIC新店-详情页-02MIC新店-详情页-04



MECHANICAL DATA
Module Dimensions
2256*1133*35mm
Weight
27.2kg
Glass
3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass
Junction-Box
IP68, three diodes
Cables
4.0mm² , 300mm in length
Cell Orientation
144cells(6*24)
ELECTRICAL CHARACTERISTICS
Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w)
Model
LR5-72HPH-545M
LR5-72HPH-550M
LR5-72HPH-555M
LR5-72HPH-560M
Max. Power
545
550
555
560
Open Circuit Voltage
49.65
49.80
49.95
50.10
Short Circuit Current
13.92
13.98
14.04
14.10
Max. Power Voltage
41.80
41.95
42.10
42.25
Max. Power Current
13.04
13.12
13.19
13.26
Efficiency²
21.1
21.3
21.5
21.7

MIC新店-详情页-05MIC新店-详情页-07MIC新店-详情页-08MIC新店-详情页-06


Previous:
Next:
Datasheet Download
