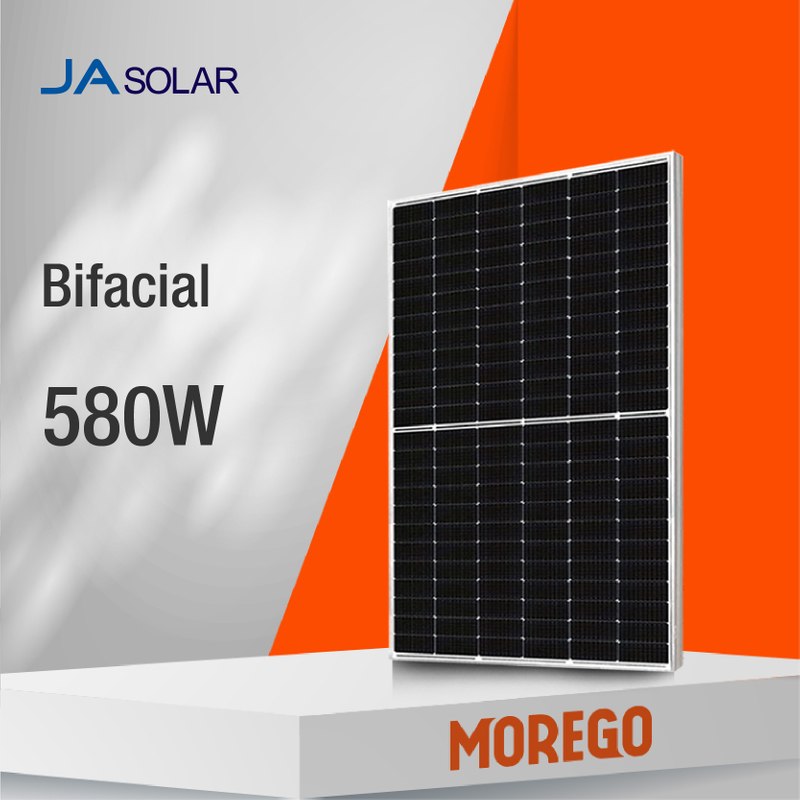

JA solar 182 N type Bifacial Solar panel 570W 575W 580W double glass solar panels

loading

Share to:
Overview

Quick Details
Brand Name: JA solar
Model Number: JAM72D40-565-580MB
Type: PERC, 1/2 Cell, Half cell solar panel
Size: 2278mm x 1134mm x 35mm
Panel Efficiency: 21.9%-22.5%
Weight: 31.8kg
Connector: PV Compatible Connector
Certificate: CE / TUV / ISO
Warranty: 12 years product warranty, 30 year linear warranty
Junction Box: IP68, 3 diodes
Packing: 36pcs per pallet
Price: $ 0.18 / Watt
  • JAM72D40 565-580/MB

  • JA solar

Availability:

Solar Panel 详情页-JA-01

Solar Panel 详情页-JA-02

Solar Panel 详情页-JA-04


MECHANICAL SPECIFICATION
Format
2278mm x 1134mm x 30mm
Weight
31.8kg±3%
Cell
144 monocrystalline cells
Junction Box
IP68, 3 diodes
Cable Length
Portrait: 200mm/300mm;800mm/800mm Landscape: 130mm/1300mm


ELECTRICAL CHARACTERISTICS
Minimum performance at standard test conditions, STC1 (power tolerance -0~+5w)
JAM72D40

565/MB
570/MB
575/MB
580/MB
Max. Power
Pmax
565W
575W
575W
580W
Open Circuit Voltage
Voc
50.85V
51.00V
51.15V
51.3V
Short Circuit Current
Isc
14.16A
14.23A
14.30A
14.36A
Max. Power Voltage
Vmp
42.55A
42.70V
42.85V
43.03V
Max. Power Current
Imp
13.28A
13.35A
13.42A
13.48A
Efficiency²
η
21.9%
22.1%
22.3%
22.5%


Solar Panel 详情页-JA-05


Solar Panel 详情页-JA-06Solar Panel 详情页-JA-07Solar Panel 详情页-JA-08
