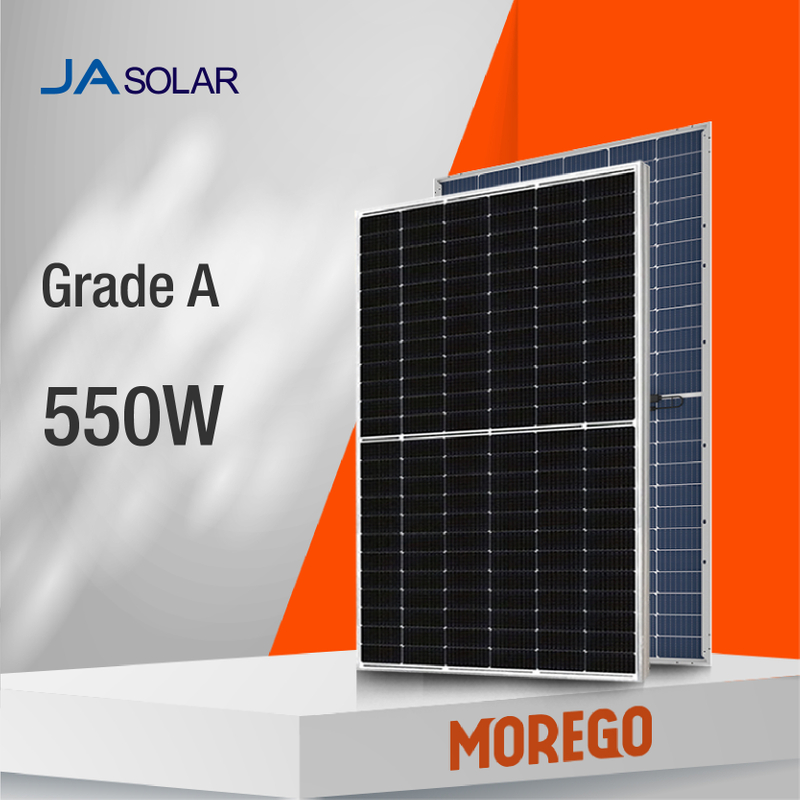

JAM72D30 530-555/MB
JA solar
Availability: | |
---|---|
MECHANICAL SPECIFICATION | |||
Format | 2285mm x 1134mm x 35mm | ||
Weight | 31.6kg±3% | ||
Cell | 144(6 x 24) monocrystalline cells | ||
Junction Box | IP68, 3 diodes | ||
Cable | 4mm2, 12 AWG |
ELECTRICAL CHARACTERISTICS | |||||
minimum performance at standard test conditions,stc1 (power tolerance -0~+5w) | |||||
Model | 530W | 535W | 540W | 545W | 550W |
Open Circuit Voltage (VOC) | 49.30V | 49.45V | 49.60V | 49.75V | 49.90V |
Short Circuit Current (Isc) | 13.72A | 13.79A | 13.86A | 13.93A | 14.00A |
Max. Power Voltage (Vmp) | 41.31V | 41.47V | 41.64V | 41.80V | 41.96V |
Max. Power Current (Imp) | 12.83A | 12.90A | 12.94A | 13.04A | 13.11A |
Efficiency² (η) | 20.5% | 20.6% | 20.8% | 21.0% | 21.2% |
MECHANICAL SPECIFICATION | |||
Format | 2285mm x 1134mm x 35mm | ||
Weight | 31.6kg±3% | ||
Cell | 144(6 x 24) monocrystalline cells | ||
Junction Box | IP68, 3 diodes | ||
Cable | 4mm2, 12 AWG |
ELECTRICAL CHARACTERISTICS | |||||
minimum performance at standard test conditions,stc1 (power tolerance -0~+5w) | |||||
Model | 530W | 535W | 540W | 545W | 550W |
Open Circuit Voltage (VOC) | 49.30V | 49.45V | 49.60V | 49.75V | 49.90V |
Short Circuit Current (Isc) | 13.72A | 13.79A | 13.86A | 13.93A | 14.00A |
Max. Power Voltage (Vmp) | 41.31V | 41.47V | 41.64V | 41.80V | 41.96V |
Max. Power Current (Imp) | 12.83A | 12.90A | 12.94A | 13.04A | 13.11A |
Efficiency² (η) | 20.5% | 20.6% | 20.8% | 21.0% | 21.2% |
