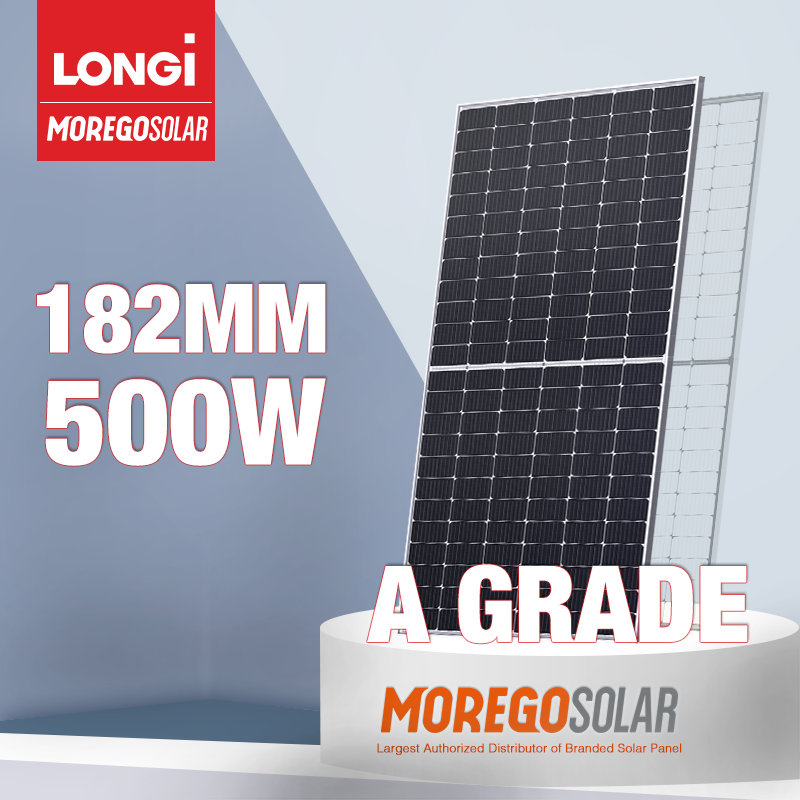

Longi Solar Mono Half Cell Photovoltaic Solar Panel 500W 505W 510W

Share to:
Moregosolar is the Official Authorized Distributor of Longi solar.
Overview


Quick Details
Brand Name: LONGI Solar
Model Number: LR5-66HPH 490-505M
Type: PERC, Half Cell, Half cell solar panel
Size: 2073*1133mm*35mm
Panel Efficiency: 20.0%-20.9%
Weight: 25.1kg
Solar cell: 182mm*182mm
Connector: PV Compatible Connector
Certificate: CE / TUV / ISO
Warranty: 12 years product warranty, 25 year linear warranty
Junction Box: IP68, 3 diodes
Packing: 30pcs per pallet
OEM Order: Acceptable


Price: $ 0.3 / Watt
  • LR5-66HPH 485-505M
  • LONGI
Availability:

Product Description

Longi solar certificatelongi solar 500w solar panel


Longi solar 455w 460W panel

Longi solar Genuine

Longi solar panel 455w 460W real shot

Longi solar 132cells solar panel 500W 505W

Original Longi solar, High efficiency, Grade A

Longi solar panel 500 wattLongi solar module details

MECHANICAL DATA
Module Dimensions
2073*1133*35mm
Weight
25.1kg
Glass
3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass
Junction-Box
IP68, three diodes
Cables
4.0mm² , 300mm in length
Cell Orientation
132cells(6*22)

ELECTRICAL CHARACTERISTICS
Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w)
Model
LR5-66HPH-480M
LR5-66HPH-485M
LR5-66HPH-490M
LR5-66HPH-495M
LR5-66HPH-500M
LR5-66HPH-505M
Max. Power
480
485
490
495
500
505
Open Circuit Voltage
44.95
45.10
45.25
45.40
45.55
45.70
Short Circuit Current
13.59
13.67
13.82
13.82
13.90
13.97
Max. Power Voltage
37.78
37.93
38.23
38.23
38.38
38.53
Max. Power Current
12.71
12.79
12.95
12.95
13.03
13.11
Efficiency²
20.4
20.6
21.1
21.1
21.3
21.5

Longi solar warranty

Moregosolar warehouse Longi solar panels
