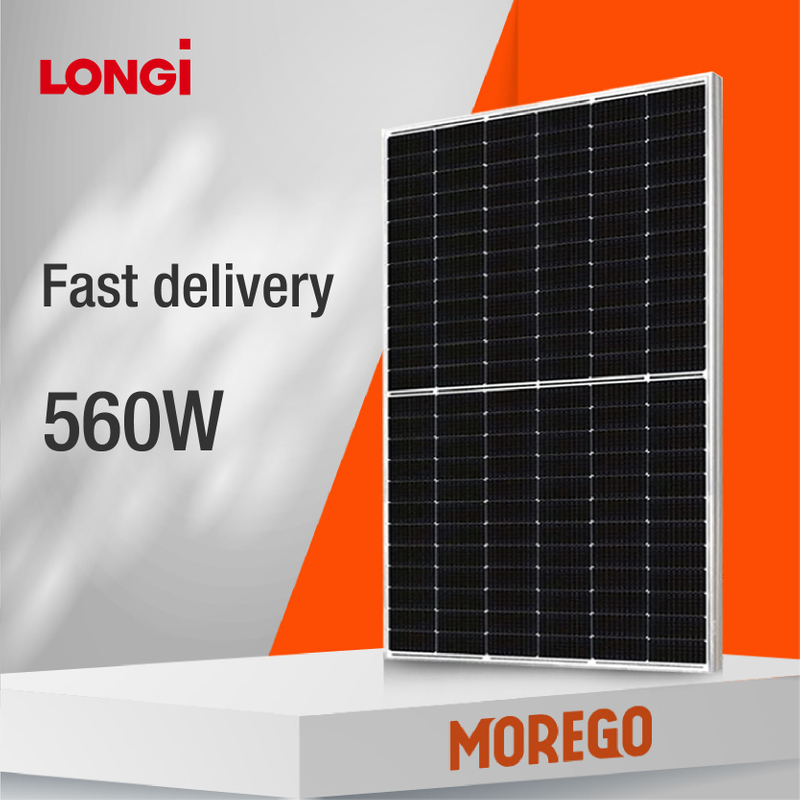

LR5-72HPH 530-560M
LONGI
Availability: | |
---|---|
MECHANICAL DATA | |||
Module Dimensions | 2256*1133*35mm | ||
Weight | 27.2kg | ||
Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass | ||
Junction-Box | IP68, three diodes | ||
Cables | 4.0mm² , 300mm in length | ||
Cell Orientation | 144cells(6*24) |
ELECTRICAL CHARACTERISTICS | ||||
Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w) | ||||
Model | LR5-72HPH-545M | LR5-72HPH-550M | LR5-72HPH-555M | LR5-72HPH-560M |
Max. Power | 545 | 550 | 555 | 560 |
Open Circuit Voltage | 49.65 | 49.80 | 49.95 | 50.10 |
Short Circuit Current | 13.92 | 13.98 | 14.04 | 14.10 |
Max. Power Voltage | 41.80 | 41.95 | 42.10 | 42.25 |
Max. Power Current | 13.04 | 13.12 | 13.19 | 13.26 |
Efficiency² | 21.1 | 21.3 | 21.5 | 21.7 |
MECHANICAL DATA | |||
Module Dimensions | 2256*1133*35mm | ||
Weight | 27.2kg | ||
Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass | ||
Junction-Box | IP68, three diodes | ||
Cables | 4.0mm² , 300mm in length | ||
Cell Orientation | 144cells(6*24) |
ELECTRICAL CHARACTERISTICS | ||||
Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w) | ||||
Model | LR5-72HPH-545M | LR5-72HPH-550M | LR5-72HPH-555M | LR5-72HPH-560M |
Max. Power | 545 | 550 | 555 | 560 |
Open Circuit Voltage | 49.65 | 49.80 | 49.95 | 50.10 |
Short Circuit Current | 13.92 | 13.98 | 14.04 | 14.10 |
Max. Power Voltage | 41.80 | 41.95 | 42.10 | 42.25 |
Max. Power Current | 13.04 | 13.12 | 13.19 | 13.26 |
Efficiency² | 21.1 | 21.3 | 21.5 | 21.7 |
