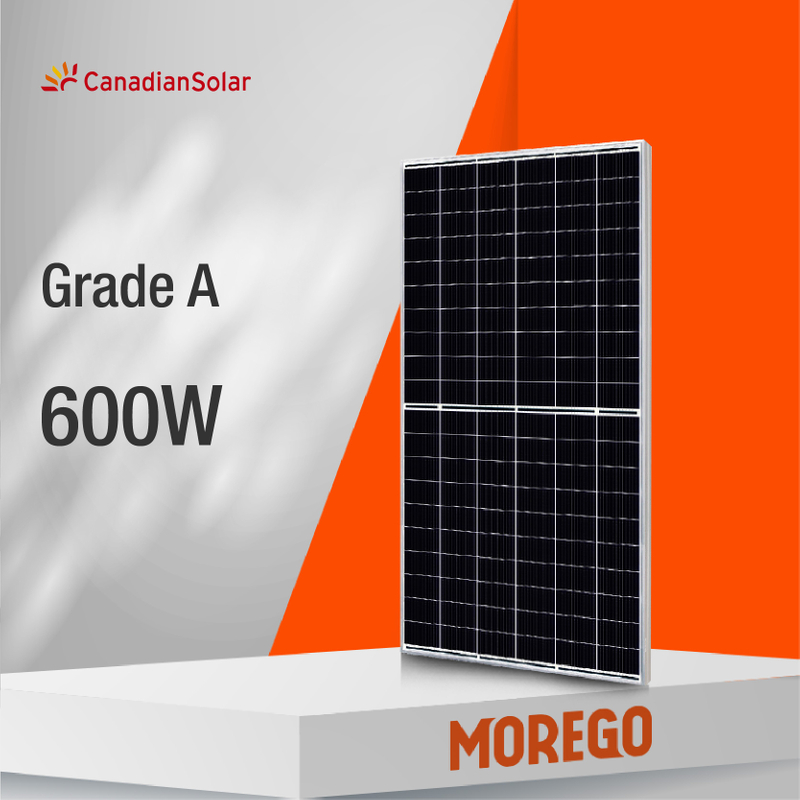

CS7L-MS 590-610
Canadian solar
| MECHANICAL SPECIFICATION | |||
| Format | 2172*1303*35mm | ||
| Weight | 32.5kg±5% | ||
| Cell | 120 monocrystalline PERC half cell，210 mm | ||
| Junction Box | Protection class IP67,with bypass diodes | ||
| Cable | 4mm² Solar cable | ||
| Connector | MC4 Compatible | ||
| ELECTRICAL DATA | STC* | ||||
| CS3W | 590MS | 595MS | 600MS | 605MS |
| Nominal Max. Power (Pmax) | 590W | 595W | 600W | 605W |
| Opt. Operating Voltage (Vmp) | 34.5V | 34.7V | 34.9V | 35.1V |
| Opt. Operating Current (Imp) | 17.11A | 17.15A | 17.20A | 17.25A |
| Open Circuit Voltage (Voc) | 40.9V | 41.1V | 41.3V | 41.5V |
| Short Circuit Current (Isc) | 18.37A | 18.42A | 18.47A | 18.52A |
| Module Efficiency | 20.8% | 21.0% | 21.2% | 21.4% |
| Operating Temperature | -40°C ~ +85°C | |||
| Max. System Voltage | 1500V or 1000V | |||
| Max. Series Fuse Rating | 30A | |||
| Application Classification | Class A | |||
| Power Tolerance | 0 ~ + 5 W | |||
| * Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C. Measurement uncertainty: ±3 % (Pmax). | ||||
| MECHANICAL SPECIFICATION | |||
| Format | 2172*1303*35mm | ||
| Weight | 32.5kg±5% | ||
| Cell | 120 monocrystalline PERC half cell，210 mm | ||
| Junction Box | Protection class IP67,with bypass diodes | ||
| Cable | 4mm² Solar cable | ||
| Connector | MC4 Compatible | ||
| ELECTRICAL DATA | STC* | ||||
| CS3W | 590MS | 595MS | 600MS | 605MS |
| Nominal Max. Power (Pmax) | 590W | 595W | 600W | 605W |
| Opt. Operating Voltage (Vmp) | 34.5V | 34.7V | 34.9V | 35.1V |
| Opt. Operating Current (Imp) | 17.11A | 17.15A | 17.20A | 17.25A |
| Open Circuit Voltage (Voc) | 40.9V | 41.1V | 41.3V | 41.5V |
| Short Circuit Current (Isc) | 18.37A | 18.42A | 18.47A | 18.52A |
| Module Efficiency | 20.8% | 21.0% | 21.2% | 21.4% |
| Operating Temperature | -40°C ~ +85°C | |||
| Max. System Voltage | 1500V or 1000V | |||
| Max. Series Fuse Rating | 30A | |||
| Application Classification | Class A | |||
| Power Tolerance | 0 ~ + 5 W | |||
| * Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C. Measurement uncertainty: ±3 % (Pmax). | ||||
