Genuine Guarantee | Bulk Price | Delivery within 7 days | After-sales Guarantee
 |

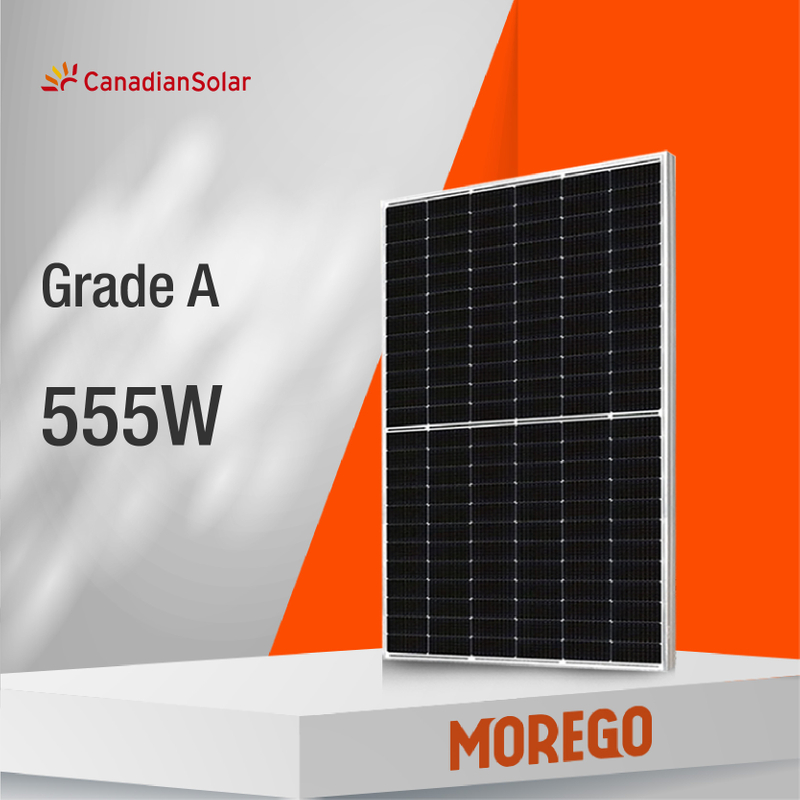

CS6W 545-555MS
Canadian solar
| MECHANICAL SPECIFICATION | |||
| Format | 2261*1134*30mm | ||
| Weight | 27.6kg±5% | ||
| Cell | 144 monocrystalline PERC half cell，210 mm | ||
| Junction Box | Protection class IP67,with bypass diodes | ||
| Cable | 4mm² Solar cable | ||
| Connector | MC4 Compatible | ||
| ELECTRICAL DATA | STC* | ||||
| CS3W | 540MS | 545MS | 550MS | 555MS |
| Nominal Max. Power (Pmax) | 540W | 545W | 550W | 555W |
| Opt. Operating Voltage (Vmp) | 41.3V | 41.5V | 41.7V | 41.9V |
| Opt. Operating Current (Imp) | 13.08A | 13.14A | 13.20A | 13.25A |
| Open Circuit Voltage (Voc) | 49.2V | 49.4V | 49.6V | 49.8V |
| Short Circuit Current (Isc) | 13.90A | 13.95A | 14.00A | 14.05A |
| Module Efficiency | 21.1% | 21.3% | 21.5% | 21.6% |
| Operating Temperature | -40°C ~ +85°C | |||
| Max. System Voltage | 1500V or 1000V | |||
| Module Fire Performance | TYPE 1 (UL 1703) or CLASS C (IEC 61730) | |||
| Max. Series Fuse Rating | 25 A | |||
| Application Classification | Class A | |||
| Power Tolerance | 0 ~ + 5 W | |||
| * Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C. Measurement uncertainty: ±3 % (Pmax). | ||||
| MECHANICAL SPECIFICATION | |||
| Format | 2261*1134*30mm | ||
| Weight | 27.6kg±5% | ||
| Cell | 144 monocrystalline PERC half cell，210 mm | ||
| Junction Box | Protection class IP67,with bypass diodes | ||
| Cable | 4mm² Solar cable | ||
| Connector | MC4 Compatible | ||
| ELECTRICAL DATA | STC* | ||||
| CS3W | 540MS | 545MS | 550MS | 555MS |
| Nominal Max. Power (Pmax) | 540W | 545W | 550W | 555W |
| Opt. Operating Voltage (Vmp) | 41.3V | 41.5V | 41.7V | 41.9V |
| Opt. Operating Current (Imp) | 13.08A | 13.14A | 13.20A | 13.25A |
| Open Circuit Voltage (Voc) | 49.2V | 49.4V | 49.6V | 49.8V |
| Short Circuit Current (Isc) | 13.90A | 13.95A | 14.00A | 14.05A |
| Module Efficiency | 21.1% | 21.3% | 21.5% | 21.6% |
| Operating Temperature | -40°C ~ +85°C | |||
| Max. System Voltage | 1500V or 1000V | |||
| Module Fire Performance | TYPE 1 (UL 1703) or CLASS C (IEC 61730) | |||
| Max. Series Fuse Rating | 25 A | |||
| Application Classification | Class A | |||
| Power Tolerance | 0 ~ + 5 W | |||
| * Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C. Measurement uncertainty: ±3 % (Pmax). | ||||
