Morego Solar Utility-scale 1.4MWp PV 4.3MWh BESS with Deye WS-L4300 Series Battery Storage for Large Industrial Energy Systems

Product Name: Large Industrial Solar + BESS

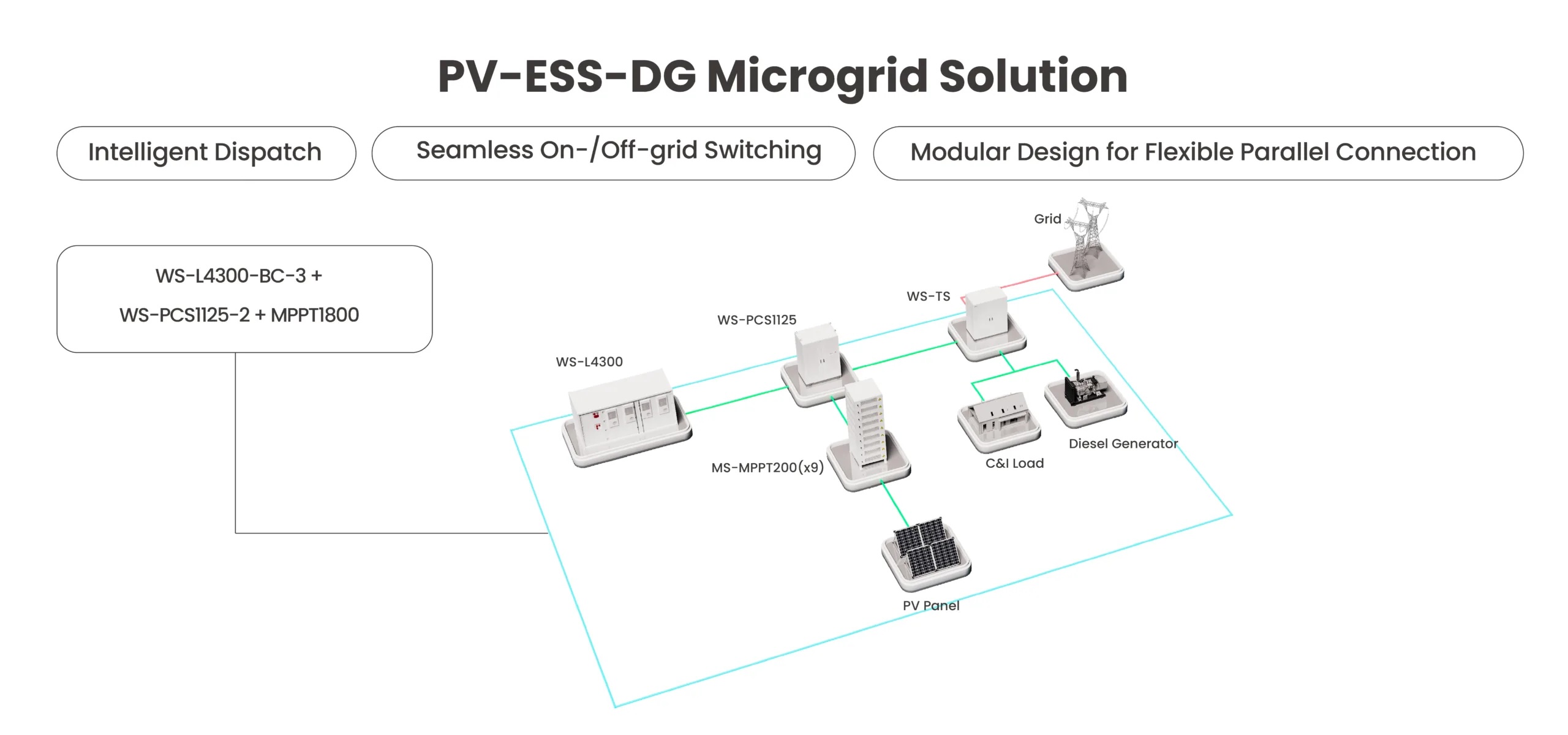

Application: Peak Shaving / Energy Shifting / Microgrid / Hybrid
PV Modules: LONGi / JA Solar / Trina Solar / Canadian Solar
BESS: Deye WS-L4300 Series

PCS: Project dependent
Cooling type: Liquid Cooling
Fire protect system: Aerosol、Water
Protection: IP55, C4-M (Optional C5)

Original Price：

$ 0.00

Discount Price：

$ 0.00

Request a Quote

Description

Configuration

Projects

Related Products

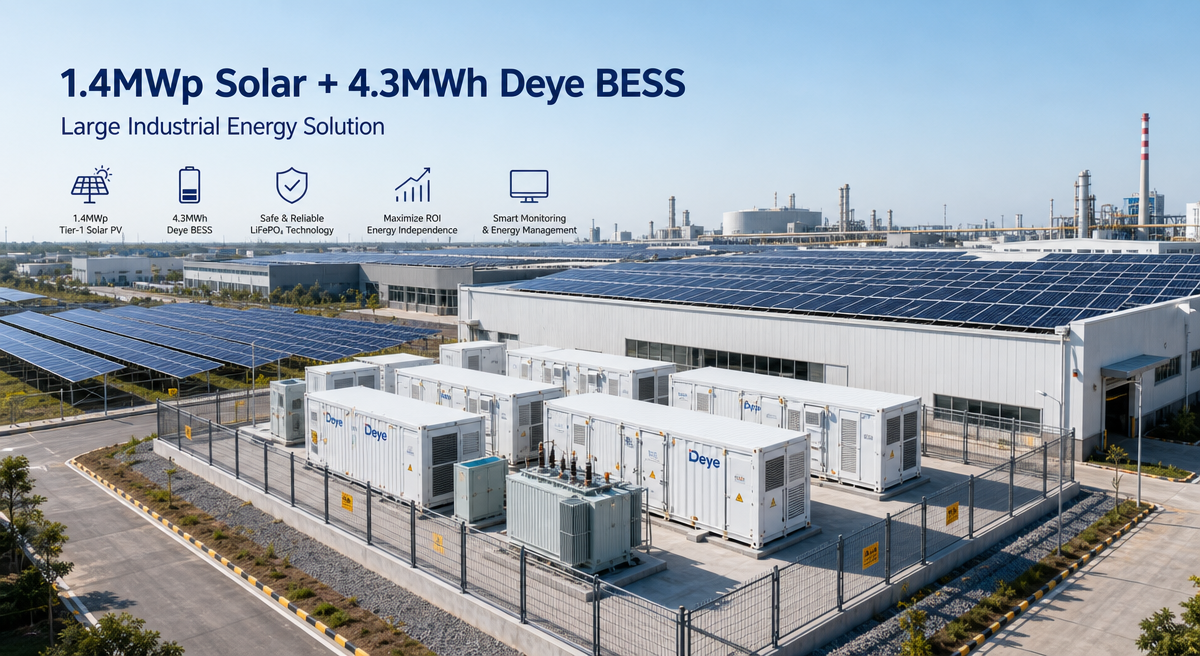

1.4MWp Solar + 4.3MWh Deye BESS

Complete Large-scale Battery Storage System Solution for Large Industrial Energy Systems

Product Overview

4.3 MWh system should not be sold simply as a larger battery.

The project needs to consider: PV generation → Load profile → PCS power → Battery duration → Grid → Backup → EMS

MoregoSolar can coordinate PV module selection and Deye BESS sourcing as one project package.

large C&I BESS industrial energy storage

Key Benefits

High Energy Capacity

Approximately 4.3 MWh battery capacity for large industrial applications.

Liquid Cooling

Designed for thermal management in high-capacity battery systems.

LFP Battery Chemistry

Suitable for stationary energy storage applications.

Project-Level Architecture

PV capacity, PCS capacity and battery duration can be matched to the actual load.

Tier-1-solar-modules-from-LONGi,-JA-Solar,-Trina-Solar-or-Canadian-Solar

Leading-PV-modules-stock-solar-panel-price

PV Module Options

MoregoSolar can match the system with current available modules from:

LONGi | JA Solar | Trina Solar | Canadian Solar

PV module power and quantity should be selected according to available roof area, inverter/ESS input requirements, project location and current supply.

Brand	Series	Power Range	Module Type
LONGi	Hi-MO X10 Scientist	640-665W	Bifacial
LONGi	Hi-MO X10 Guardian	640-665W	Bifacial, Anti-Dust / Anti Glare / Light Design / Fire-Resistant
Trina Solar	Vertex N Series	630-650W, 725-745W	TOPCon, Bifacial
JA solar	DeepBlue 5.0	645-655W	TOPCon, Bifacial
JA solar	DeepBlue 4.0	620-650W, 720-745W	TOPCon, Bifacial
Canadian Solar	TopBiHiKu 7	720-725W	TOPCon, Bifacial
Canadian Solar	TopBiHiKu 6	620-645W	TOPCon, Bifacial

The Deye WS-G(S)2000-2H3 is a utility-scale air-cooled ESS rated at 1 MW with 2.057 MWh system energy and up to 1.6 MW PV input. Deye lists the system for applications including peak shaving, backup and off-grid operation.

MoregoSolar can pair the BESS with Tier-1 modules from LONGi, JA Solar, Trina Solar or Canadian Solar.

Recommended System Configuration:

Item	Recommended Configuration
PV Panel Access Power	1600 kWp or 800kWp
Max. Operating PV Input Current	8×（40+40+40+40+40+40+40+40）A
Nominal Energy	2057kWh
Deye ESS	WS-GS2000-2H3
PV Module Brands	LONGi / JA Solar / Trina / Canadian Solar
System Type	UTILITY-SCALE Solar + ESS
Grid Connection Form	380/400V 3L+N+PE
Rated Frequency	50 / 60Hz
Main Applications	Mining / Microgrid / Peak Shaving / Backup

FAQ 1: Can it be used with diesel generators?

A: Yes, hybrid microgrid configurations can be engineered according to project requirements.

FAQ 2: Can this system be expanded for larger projects?

A: Yes. Larger projects can be designed using additional Deye utility-scale BESS units or a larger system architecture, subject to project load requirements, grid conditions and Deye system design.

FAQ 3: Which PV brands can be used?

A: LONGi, JA Solar, Trina Solar and Canadian Solar are available options through MoregoSolar.

FAQ 4: What is the maximum PV input of the Deye WS-G(S)2000-2H3?

A: The Deye WS-G(S)2000-2H3 supports up to 1.6 MW PV input according to the current Deye specifications.
