Morego Solar Complete Utility-scale Air-cooled PV Battery Storage System 1.6MWp Solar + 2.057MWh Deye BESS for Mining Microgrid

Product Name: Mining Solar + BESS Microgrid
Application: Mining / Microgrid / Peak Shaving / Backup
PV Modules: LONGi / JA Solar / Trina Solar / Canadian Solar
ESS: Deye WS-G(S)2000-2H3
Cooling type: Air cooling
Main Applications: Mining / Microgrid / Peak Shaving / Backup
Fire protect system: Gas fire protection+Water fire protection
Protection: IP54, C4-M

Dimension (W/D/H,mm): 20ft (HC）

Weight approximate (kg): ≤26000kg

Original Price：

$ 0.00

Discount Price：

$ 0.00

Request a Quote

Description

Configuration

Projects

Related Products

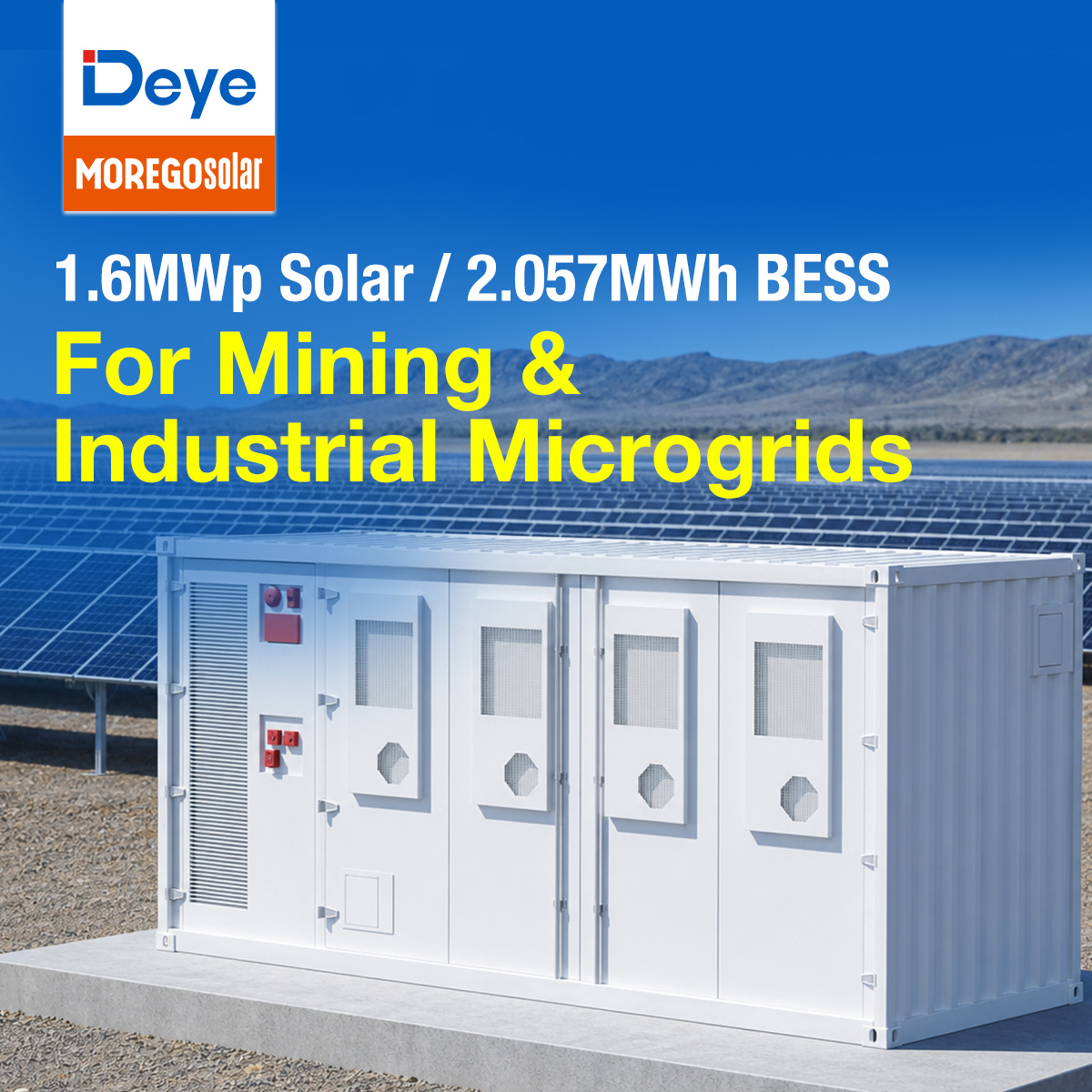

1.6MWp Solar + 2.057MWh Deye ESS

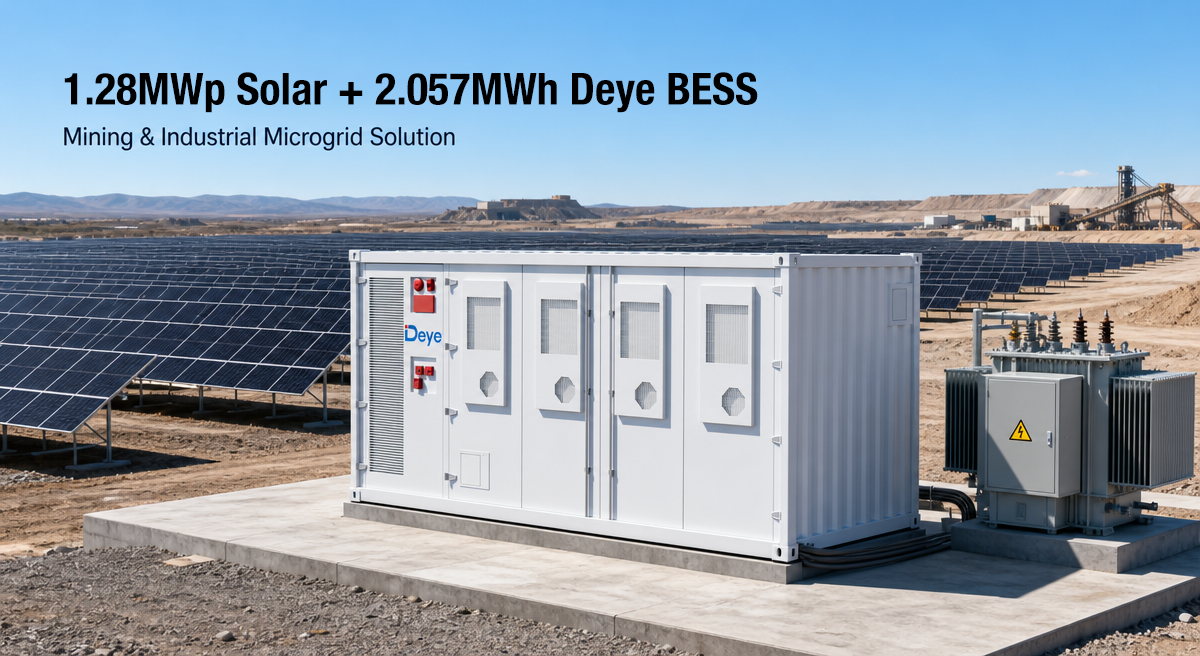

Complete utility-scale air-cooled solar + battery storage solution For Mining & Industrial Microgrids

Product Overview

Mining operations and remote industrial sites require stable power for processing, pumps, ventilation, material handling and other critical loads.

Key Benefits

High PV Input

The Deye system supports up to 1.6 MW PV input.

2.057 MWh Storage

Provides substantial energy storage capacity for load shifting and renewable integration.

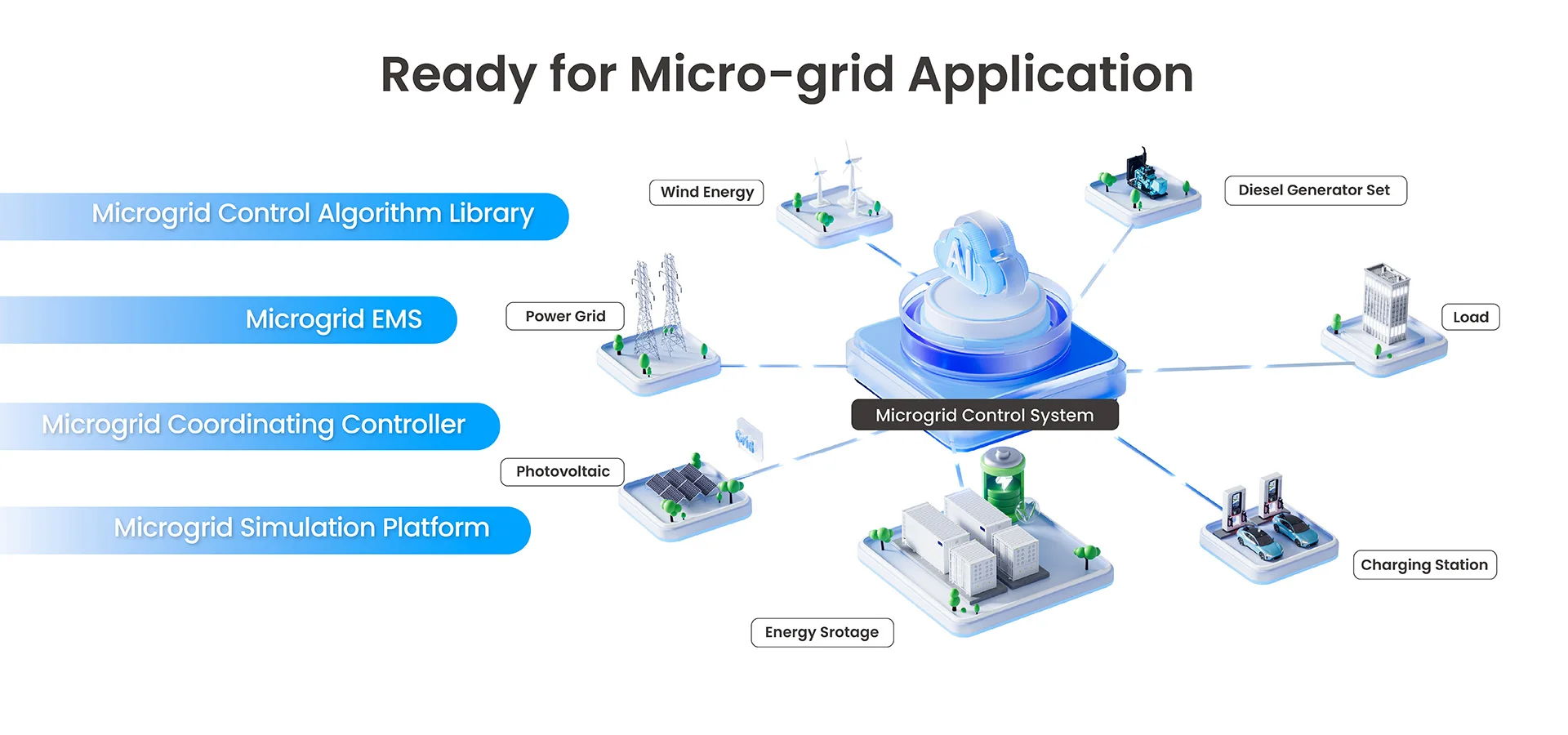

Hybrid Operation

Suitable for projects combining solar, battery, grid and/or diesel generation.

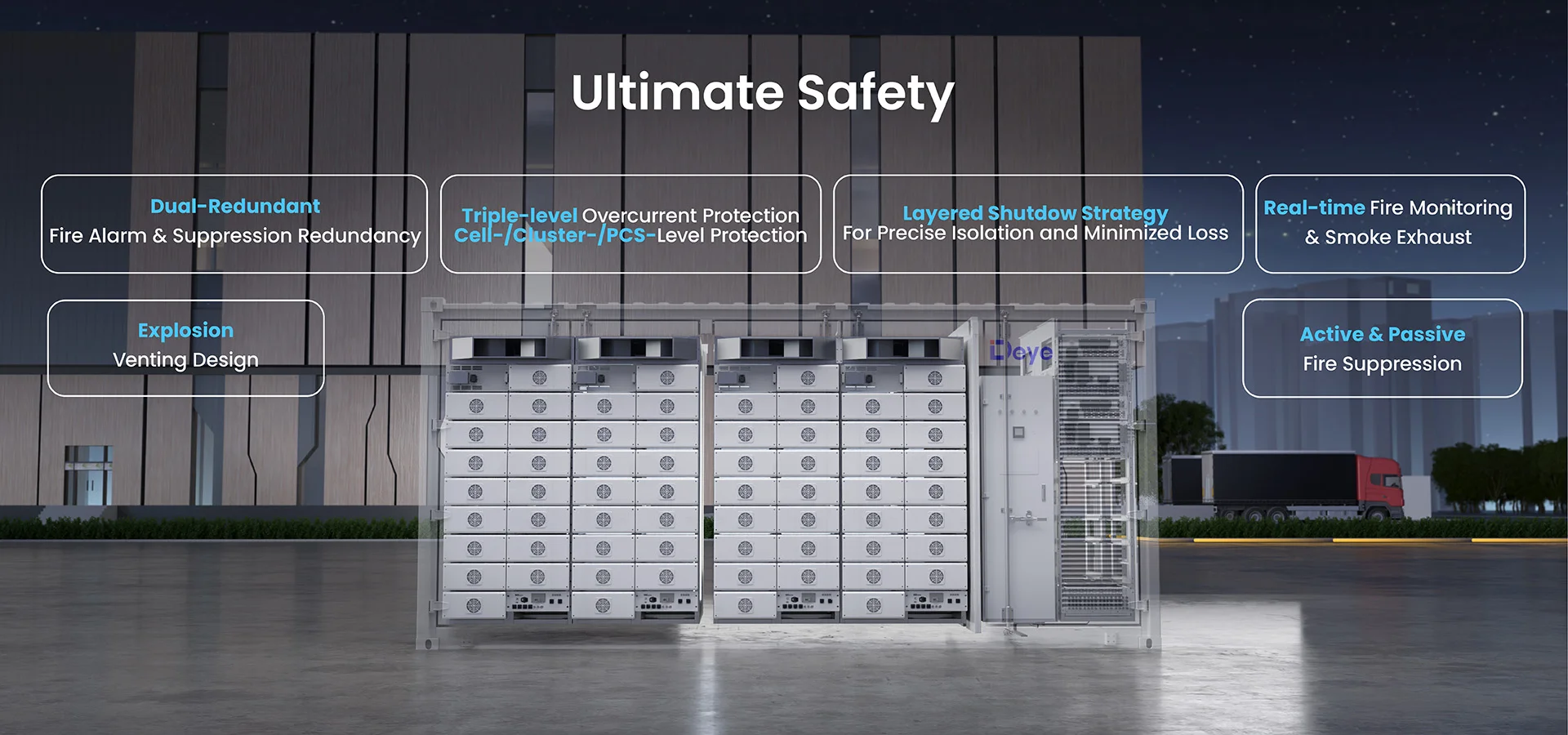

Designed for Harsh Environments

Deye specifies IP54 enclosure protection and C4-M anti-corrosion protection.

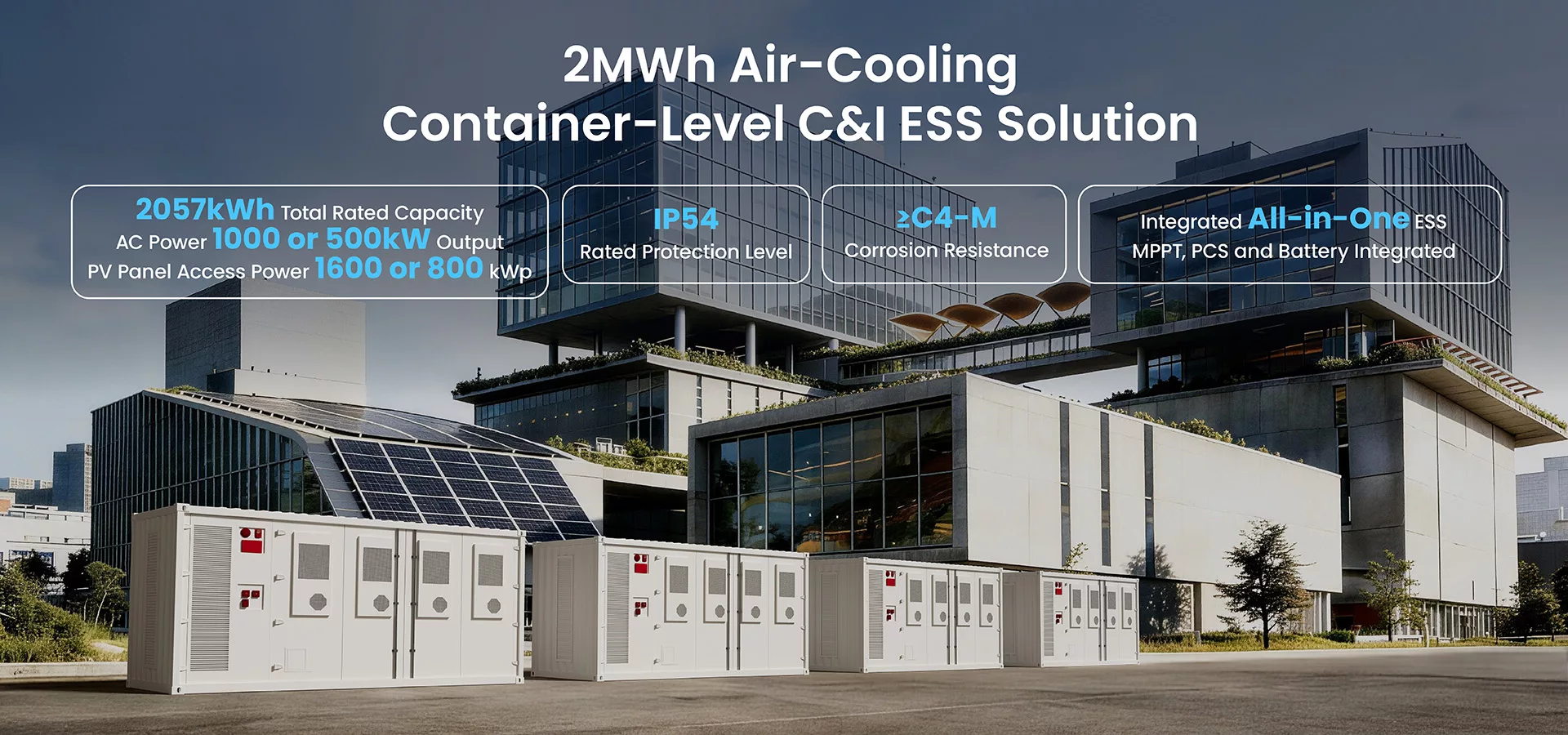

2MW air-cooling Container-Level C&I ESS solution

Tier-1-solar-modules-from-LONGi,-JA-Solar,-Trina-Solar-or-Canadian-Solar

Leading-PV-modules-stock-solar-panel-price

PV Module Options

MoregoSolar can match the system with current available modules from:

LONGi | JA Solar | Trina Solar | Canadian Solar

PV module power and quantity should be selected according to available roof area, inverter/ESS input requirements, project location and current supply.

Brand	Series	Power Range	Module Type
LONGi	Hi-MO X10 Scientist	640-665W	Bifacial
LONGi	Hi-MO X10 Guardian	640-665W	Bifacial, Anti-Dust / Anti Glare / Light Design / Fire-Resistant
Trina Solar	Vertex N Series	630-650W, 725-745W	TOPCon, Bifacial
JA solar	DeepBlue 5.0	645-655W	TOPCon, Bifacial
JA solar	DeepBlue 4.0	620-650W, 720-745W	TOPCon, Bifacial
Canadian Solar	TopBiHiKu 7	720-725W	TOPCon, Bifacial
Canadian Solar	TopBiHiKu 6	620-645W	TOPCon, Bifacial

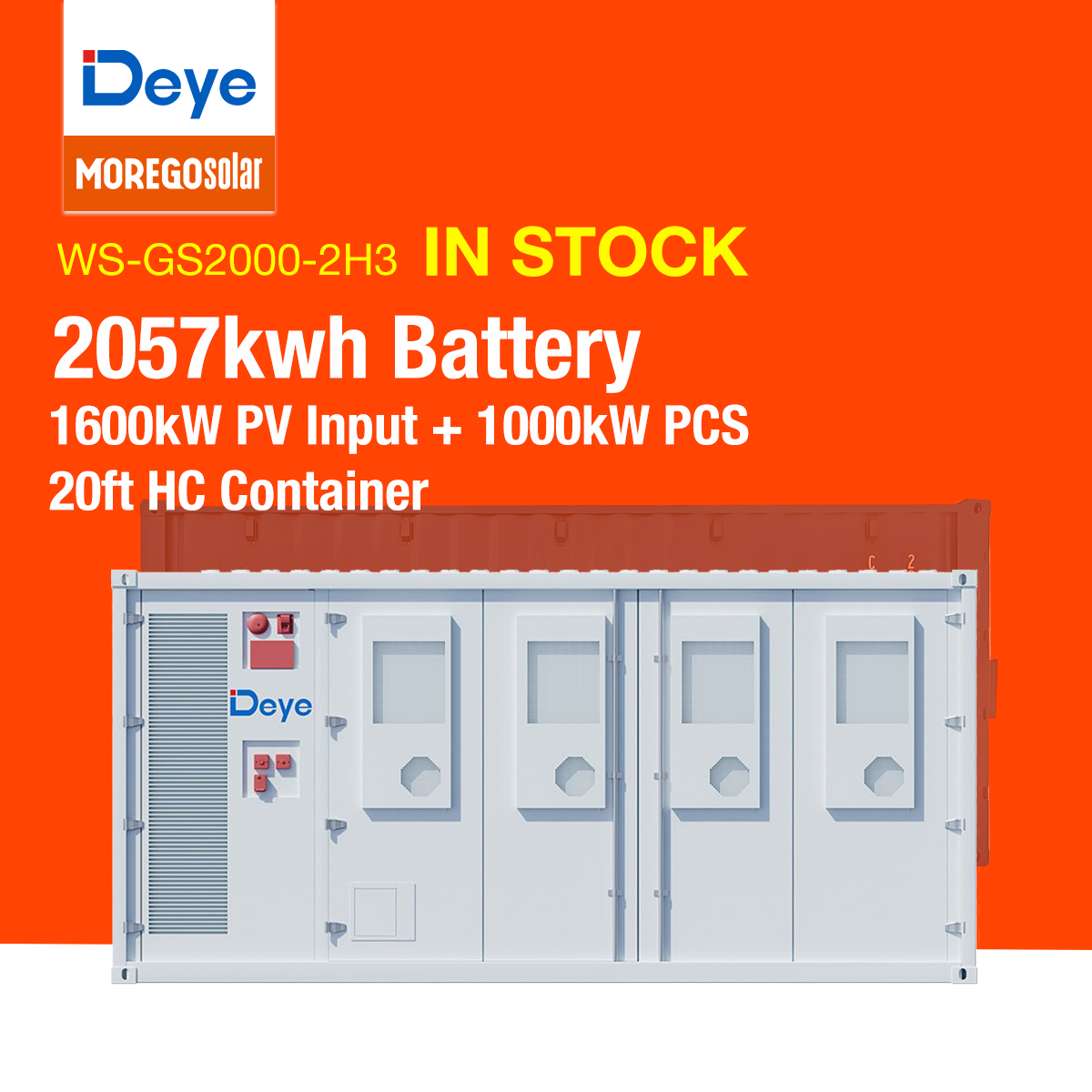

The Deye WS-G(S)2000-2H3 is a utility-scale air-cooled ESS rated at 1 MW with 2.057 MWh system energy and up to 1.6 MW PV input. Deye lists the system for applications including peak shaving, backup and off-grid operation.

MoregoSolar can pair the BESS with Tier-1 modules from LONGi, JA Solar, Trina Solar or Canadian Solar.

Recommended System Configuration:

Item	Recommended Configuration
PV Panel Access Power	1600 kWp or 800kWp
Max. Operating PV Input Current	8×（40+40+40+40+40+40+40+40）A
Nominal Energy	2057kWh
Deye ESS	WS-GS2000-2H3
PV Module Brands	LONGi / JA Solar / Trina / Canadian Solar
System Type	UTILITY-SCALE Solar + ESS
Grid Connection Form	380/400V 3L+N+PE
Rated Frequency	50 / 60Hz
Main Applications	Mining / Microgrid / Peak Shaving / Backup

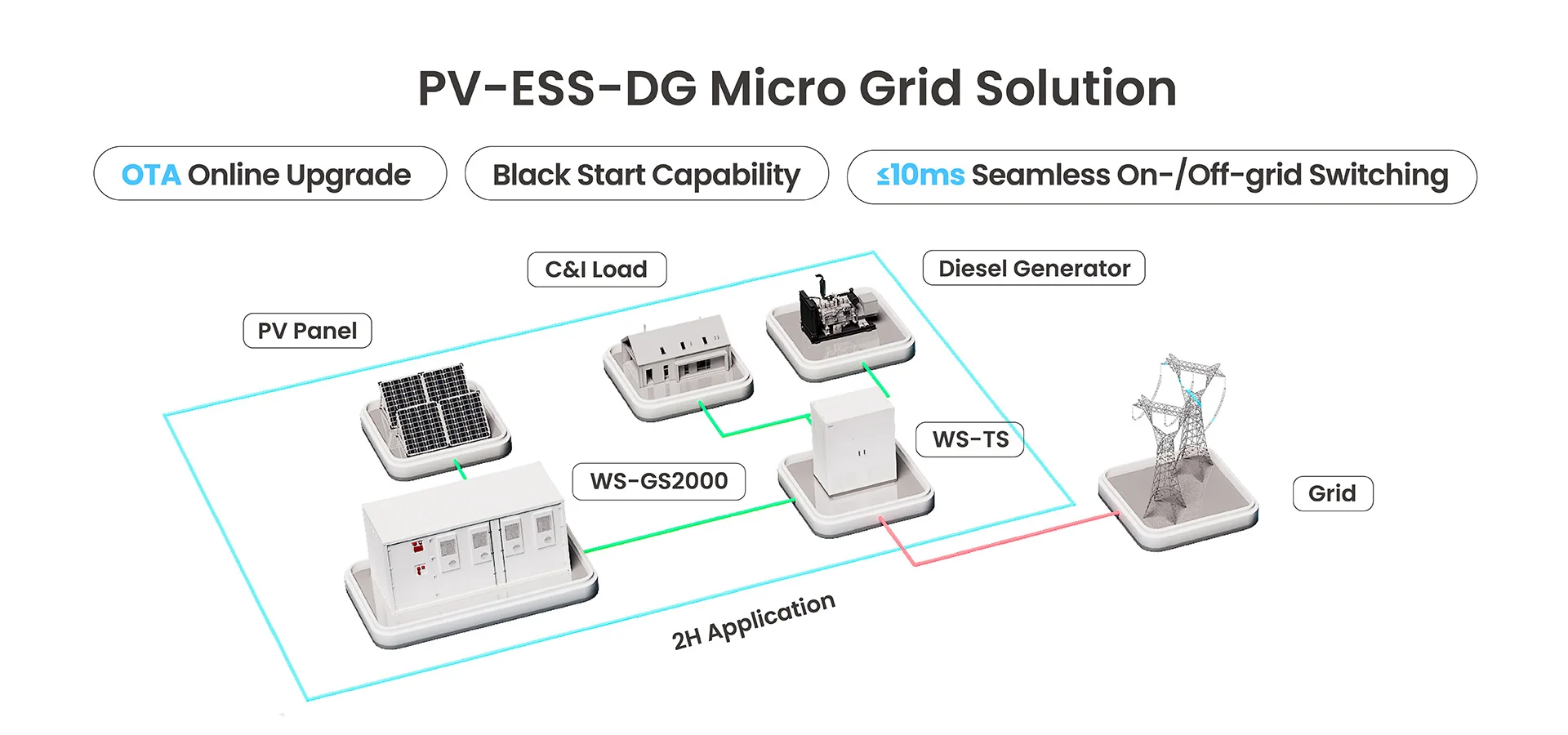

FAQ 1: Can it be used with diesel generators?

A: Yes, hybrid microgrid configurations can be engineered according to project requirements.

FAQ 2: Can this system be expanded for larger projects?

A: Yes. Larger projects can be designed using additional Deye utility-scale BESS units or a larger system architecture, subject to project load requirements, grid conditions and Deye system design.

FAQ 3: Which PV brands can be used?

A: LONGi, JA Solar, Trina Solar and Canadian Solar are available options through MoregoSolar.

FAQ 4: What is the maximum PV input of the Deye WS-G(S)2000-2H3?

A: The Deye WS-G(S)2000-2H3 supports up to 1.6 MW PV input according to the current Deye specifications.
