Product Category

Morego Solar Complete C&I Modular 400kWp PV 430kWh Deye ESS Hybrid System for Cold Storage, Food Processing & Refrigerated Facilities

Product Name: Commercial Building & Hotel ESS
Application: Self-Consumption / Peak Shaving / Load Shifting / Backup
PV Modules: LONGi / JA Solar / Trina Solar / Canadian Solar
ESS: Deye MC-L430-2H3
Grid Connection: 3-phase
Operating Modes: Solar Self-Consumption / Peak Shaving / Energy Shifting / Backup
Communication: RS485, Modbus TCP, DIDO
Protection: IP54, ≥C4

Original Price：

$ 0.50

Discount Price：

$ 0.50

Description

Configuration

Projects

Related Products

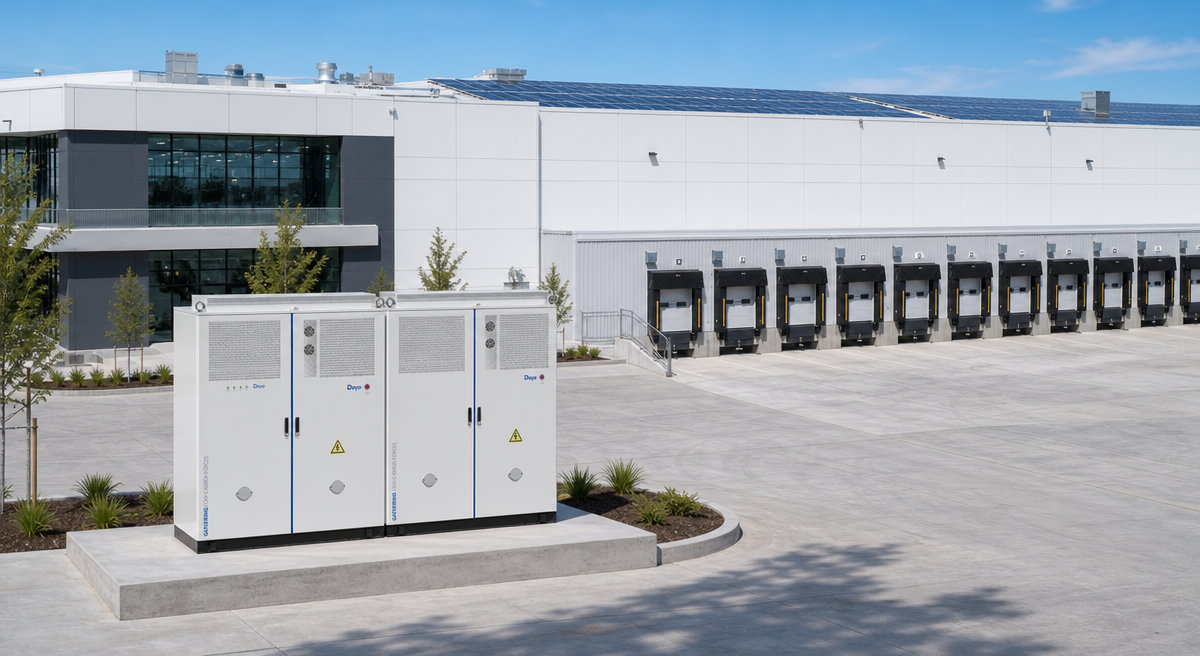

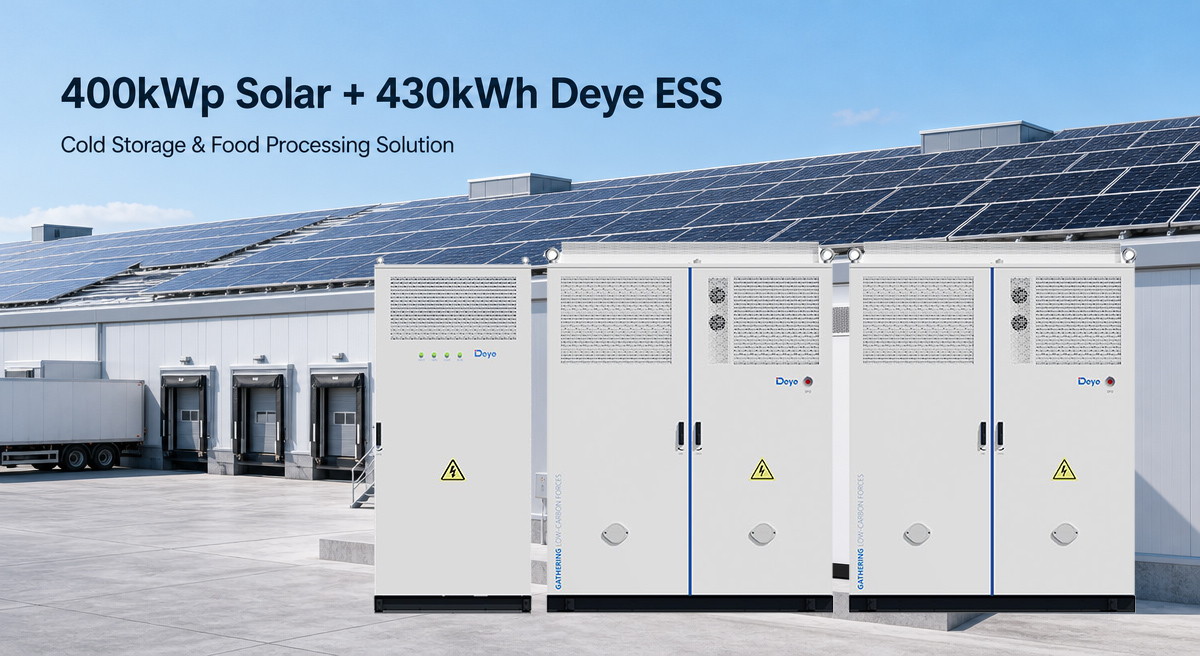

400kWp Solar + 430kWh Deye ESS

For cold storage, food processing and refrigerated facilities using

Product Overview

Cold storage and food processing facilities can have substantial electricity demand from refrigeration systems, compressors, pumps, processing equipment and ventilation.

Key Benefits

Reduce Grid Dependency

Solar generation can directly supply refrigeration and processing loads.

Store Surplus Solar

Excess daytime PV can be stored and used when required.

Peak Demand Management

Battery discharge can be scheduled around high-demand periods.

Scalable Storage

Additional Deye ESS units can be considered for larger facilities.

PV Module Options

MoregoSolar can match the system with current available modules from:

LONGi | JA Solar | Trina Solar | Canadian Solar

PV module power and quantity should be selected according to available roof area, inverter/ESS input requirements, project location and current supply.

Brand	Series	Power Range	Module Type
LONGi	Hi-MO X10 Scientist	640-665W	Bifacial
LONGi	Hi-MO X10 Guardian	640-665W	Bifacial, Anti-Dust / Anti Glare / Light Design / Fire-Resistant
Trina Solar	Vertex N Series	630-650W, 725-745W	TOPCon, Bifacial
JA solar	DeepBlue 5.0	645-655W	TOPCon, Bifacial
JA solar	DeepBlue 4.0	620-650W, 720-745W	TOPCon, Bifacial
Canadian Solar	TopBiHiKu 7	720-725W	TOPCon, Bifacial
Canadian Solar	TopBiHiKu 6	620-645W	TOPCon, Bifacial

This configuration combines approximately 400 kWp of Tier-1 solar PV with two Deye MC-L430 systems, providing approximately 220 kW PV power and 430 kWh battery energy.

Solar PV can directly supply daytime loads while the battery provides additional flexibility for peak shaving, energy shifting and selected backup loads.

Recommended System Configuration:

Item	Recommended Configuration
Rated Power	200 kW
Maximun Power	220kW ( 1.1 times of rated power )
Nominal Energy	430.08 kWh
Deye ESS	MC-L430-2H3 ( AC BESS ), MC-L430-BC-3 ( DC BESS ）
PV Module Brands	LONGi / JA Solar / Trina / Canadian Solar
System Type	C&I Solar + ESS
Nominal AC Voltage	380/400V 3L+N+PE
Rated Frequency	50 / 60Hz
Main Applications	Self-Consumption / Peak Shaving / Load Shifting / Backup

FAQ 1: Why is battery storage useful for cold storage?

A: Refrigeration equipment can create continuous and substantial electrical demand. Battery storage adds flexibility for solar utilization and demand management.

FAQ 2: Can this system be expanded?

A: Yes. The Deye MS-G(S)215 platform supports parallel configurations for larger projects.

FAQ 3: Which PV brands can be used?

A: LONGi, JA Solar, Trina Solar and Canadian Solar are available options through MoregoSolar.
