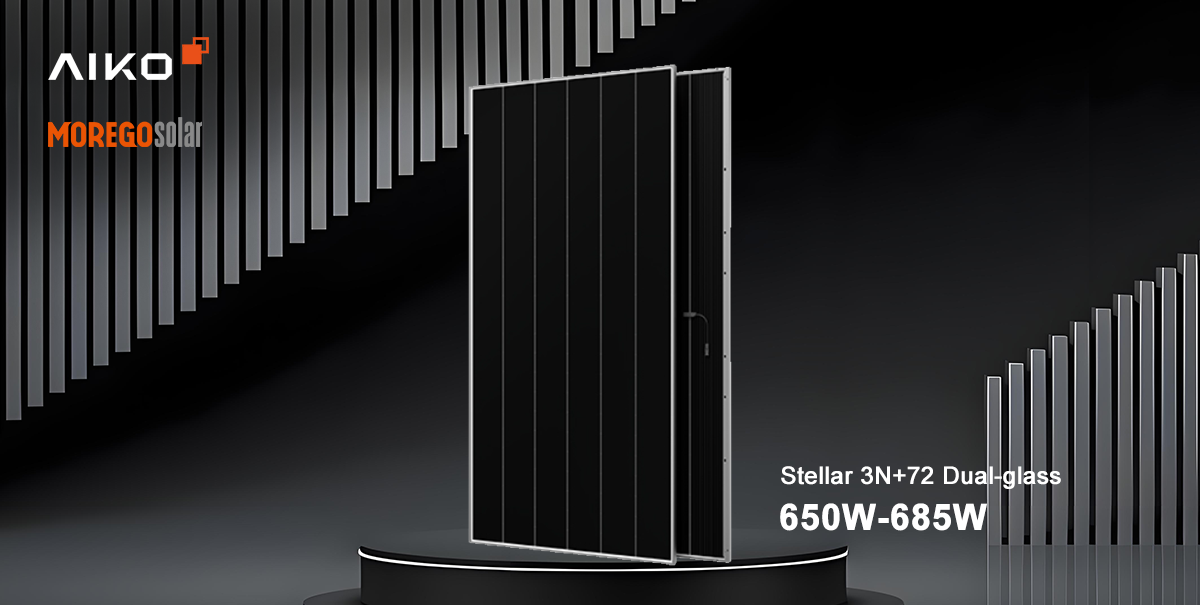

Model Number: Stellar 3N+72 Dual-glass 650W-685W AIKO-A-MDE72Dw
Type: N-Type ABC Dual-glass
Size: 2382*1134*30mm
Panel Efficiency: 25.4%
Weight: 32.2kg
Warranty: 15 years product warranty, 30 years linear warranty
Description
Parameter
Certificate
Projects
Related Products
AIKO SOLAR PANELS
With MOREGO , you gain access to a comprehensive selection of Aiko Solar Panels, ensuring you find the perfect fit for your solar energy requirements. Experience the advantage of working with a trusted partner who offers competitive pricing, extensive product knowledge, and unparalleled customer support.


Solar Panel Front
There is no Busbar on the front, and the appearance of pure black on the front makes your roof more beautiful.

Not only makes the color of the roof more beautiful, but also does not affect the efficiency and power generation.

In the background of each solar panel, there is a label pasted by the original factory, which clearly marks the voltage, current, certification logo and other information.

Barcode is posted on the Frame of each solar panel. You can use the barcode to check the authenticity and Grade of the solar panel on the Canadian Solar official website.
Partial Shading Optimization Function
High Temperature restriction Test
| Partial Shading Optimisation
| Better Temperature Coefficient
| High Temperature Restriction
| Micro-crack Resistance
| Higher Power
| Lower BOS
| More Aesthetic Values
| Infinite Technology
Efficiency: up to 25.4%
Low performance degradation: ≤ 1% in the first year, and ≤ 0.35%/year in the following years
Premium warranty: 15-year product warranty 30-year performance warranty
Better temperature coefficient: -0.26%/°C
| Electrical Characteristics (STC: AM1.5 1000W/m² 25℃ NOCT: AM1.5 800W/m² 20℃ 1m/s) Power Tolerance: 0~+3% | ||||||||||||||
| Module | AIKO-A655-MDE72Dw | AIKO-A660-MDE72Dw | AIKO-A665-MDE72Dw | AIKO-A670-MDE72Dw | AIKO-A675-MDE72Dw | AIKO-A680-MDE72Dw | AIKO-A685-MDE72Dw | |||||||
| Test Conditions | STC | STC | STC | STC | STC | STC | STC | |||||||
| Pmax [W] | 655 | 660 | 665 | 670 | 675 | 680 | 685 | |||||||
| Voc [V] | 55 | 55.1 | 55.2 | 55.3 | 55.4 | 55.5 | 55.6 | |||||||
| Vmp [V] | 44.89 | 44.99 | 45.09 | 45.19 | 45.29 | 45.39 | 45.49 | |||||||
| Isc [A] | 15.33 | 15.39 | 15.45 | 15.52 | 15.59 | 15.66 | 15.73 | |||||||
| Imp [A] | 14.6 | 14.68 | 14.75 | 14.83 | 14.91 | 14.99 | 15.07 | |||||||
| Module Efficiency | 24.2% | 24.4% | 24.6% | 24.8% | 25.0% | 25.2% | 25.4% | |||||||
| Product Specification | ||
| Cell Type | N-Type ABC | |
| Front Cover | 2.0mm coated semi tempered glass | |
| Rear Cover | 2.0mm semi tempered glass | |
| Frame | Anodized aluminum | |
| Cable | 4mm²(IEC) 12AWG(UL)+400mm, -200mm/±1400mm or Customized Length | |
| No. of Cells | 144(6*24) | |
| Junction Box | IP68, 3 bypass diodes | |
| Connector | MC4 Compatible/Original MC4-EVO2A | |
| Weight | 32.2kg±3% | |
| Dimension | 2382*1134*30mm | |
| Package Detail | 36pcs per pallet / 144pcs per 20'GP / 720pcs per 40'HC | |
We are the Official Authorized Distributor of Aiko Solar since 2024.
We promise that all Aiko solar modules are original.
Contact us to get the latest price now! Mob: 0086 181 1880 9916, Email: sales@mogesolar.com

Load directly from manufacturers warehouse

Alibaba orders can protect your payment and delivery

Accept the third party inspections

One-stop purchasing for solar products

Excellent Dealer award for many years in a row

Product Qualification, TUV, CE, FR Report, Pre-shipment Inspection Report
Understanding the importance of reliable solar solutions, we are dedicated to offering an unparalleled service experience that ensures your investment in solar energy is protected and maximized. Here's why choosing MOREGO for your Aiko Solar Panel needs means stepping into a world of hassle-free solar solutions.

"Moge's one-stop procurement service is incredibly convenient! They not only provide the most suitable design solutions but also guarantee a 24-hour quick response, even during holidays! The purchasing experience is excellent!"

"As a small business owner, installing solar panels was to lower energy expenses. Now, our business is more competitive, and with stable electricity generation for 30 years, we're contributing to sustainable development."

Jorge Said:
"As a retired engineer, installing solar panels was to apply my professional knowledge and skills in practice. Now, I feel very proud that my efforts have not only contributed to society but also brought me satisfaction."

Accounts Said:
"As an environmental volunteer, I installed solar panels to practice my environmental beliefs. Now, I'm influencing more people through my actions, making them aware of the importance of renewable energy."
AIKO is a global-leading new energy technology company, focusing on the R&D
manufacturing of solar generation products and PV-Storage-Charging integrated solutions, providing customers with solar cells, ABC (All Back Contact) modules and scenario-based packaged solutions. With the mission of “Empowering transformation towards a carbon-free era”, AIKO keeps on pursuing extreme innovation and cutting-edge technology.
