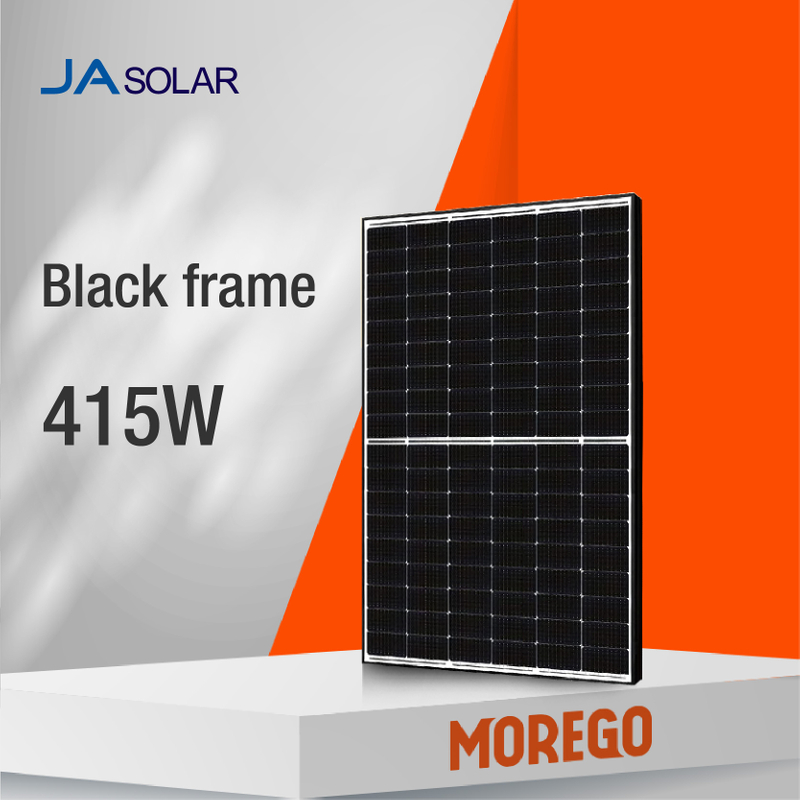

JA Solar MBB Black Solar Panel 400W 405W 410W 415W 420W

loading

Share to:
Overview

Quick Details
Brand Name: JA solar
Model Number: JAM54S30 400-420/MR
Type: PERC, 1/2 Cell, Half cell solar panel
Size: 1722mm x 1134mm x 30mm
Panel Efficiency: 20.5%-21.0%
Weight: 21kg
Solar cell: 182mm*182mm
Connector: PV Compatible Connector
Certificate: CE / TUV / ISO
Warranty: 12 years product warranty, 25 year linear warranty
Junction Box: IP68, 3 diodes
Packing: 36pcs per pallet
Price: $ 0.18 / Watt
  • AM72S10 -400-420/MR

  • JA solar

Availability:

Solar Panel 415W-1-full black



Solar Panel 详情页-JA-02

Solar Panel 详情页-JA-04-full black

MECHANICAL SPECIFICATION
Format
1722mm x 1134mm x 30mm
Weight
21.5kg±3%
Cell
6 x 18 monocrystalline cells
Junction Box
IP68, 3 diodes
Cable
Portrait: 300mm(+)/400mm(-); Landscape: 1200mm(+)/1200mm(-)


ELECTRICAL CHARACTERISTICS
minimum performance at standard test conditions,stc1 (power tolerance -0~+5w)
Model


JAM72S10 -400/MR
JAM72S10 -405/MR
JAM72S10 -410/MR
Max. Power
Pmax
[W]
400
405
410
Open Circuit Voltage
Voc
[V]
37.07
37.23
37.32
Short Circuit Current
Isc
[A]
13.79
13.87
13.95
Max. Power Voltage
Vmp
[V]
31.01
31.21
31.45
Max. Power Current
Imp
[A]
12.9
12.98
13.04
Efficiency²
η
[%]
20.5
20.7
21.0


Solar Panel 详情页-JA-05Solar Panel 详情页-JA-06Solar Panel 详情页-JA-07Solar Panel 详情页-JA-08


Previous:
Next:
Datasheet Download
