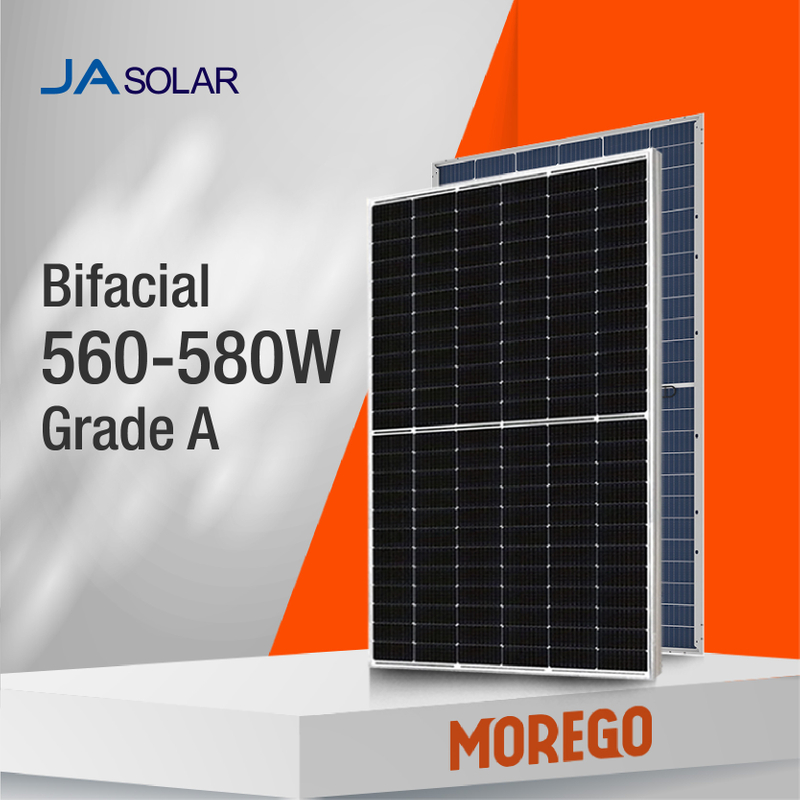

JA Solar LB Series Bifacial 565W 560W 575W 570W 580W Double Glass Solar Panel with 30 Years Warranty

loading

Share to:
Overview

Quick Details
Brand Name: JA solar
Model Number: JAM72S30 560-580/LR
Type: PERC, Half cell solar panel
Size: 2333mm x 1134mm x 35mm
Panel Efficiency: 22.1%
Weight: 32.5kg±3%
Connector: MC4-EVO2
Certificate: CE / TUV / ISO
Warranty: 12 years product warranty, 30 year linear warranty
Junction Box: IP68, 3 diodes
Packing: 36pcs per pallet
Price: $ 0.18 / Watt
  • JAM72D30 560-580/LB

  • JA solar

Availability:

JA solar panel-560-580W-01Solar Panel 详情页-JA-02


JA solar panel-560-580W-04


MECHANICAL SPECIFICATION
Format
2333mm x 1134mm x 35mm
Weight
33kg±3%
Cell
144(6 x 24) monocrystalline cells
Junction Box
IP68, 3 diodes
Cable
4mm2, 12 AWG


ELECTRICAL CHARACTERISTICS
minimum performance at standard test conditions,stc1 (power tolerance -0~+5w)
Model

565W
570W
575W
580W
Open Circuit Voltage
Voc
50.50V
50.68V
50.86V
51.04V
Short Circuit Current
Isc
14.31A
14.37A
14.44A
14.50A
Max. Power Voltage
Vmp
41.68V
41.87V
42.05V
42.24V
Max. Power Current
Imp
13.56A
13.62A
13.67A
13.73A
Efficiency²
η
21.4%
21.5%
21.7%
21.9%


JA solar panel 555wSolar Panel 详情页-JA-06Solar Panel 详情页-JA-07Solar Panel 详情页-JA-08
