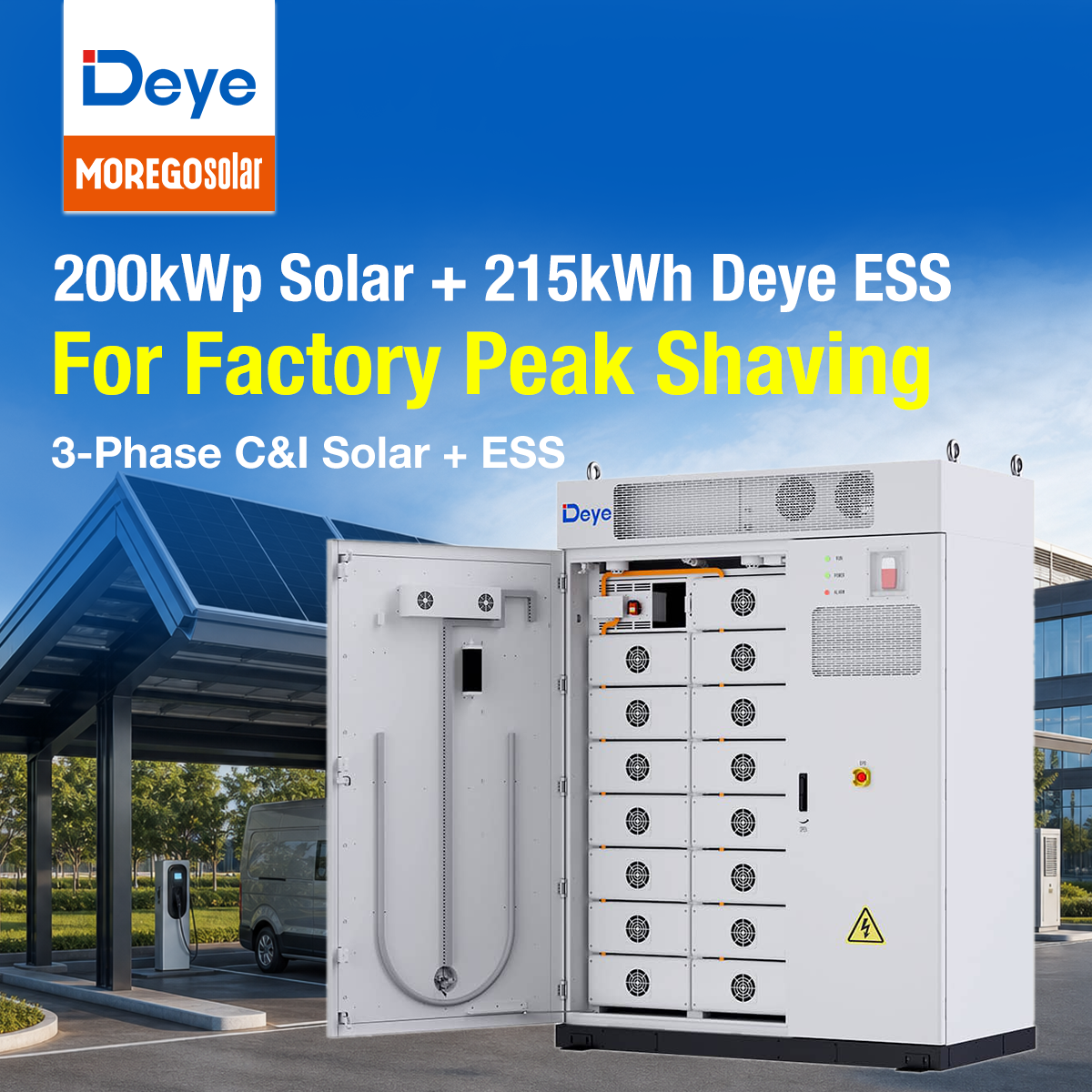

MOREGO Solar 200kWp Solar + 215kWh Deye ESS for Factory Peak Shaving & Energy Cost Reduction

Product Name: Factory Peak Shaving ESS
Application: Home / Commercial, Industrial, etc.
PV Modules: LONGi / JA Solar / Trina Solar / Canadian Solar
ESS: Deye MS-GS215-2H3
Grid Connection: 3-phase
Operating Modes: Solar Self-Consumption / Peak Shaving / Energy Shifting / Backup
Communication: Ethernet / 4G
Protection: IP54, C5 anti-corrosion

Original Price：

$ 0.50

Discount Price：

$ 0.50

Description

Configuration

Projects

Related Products

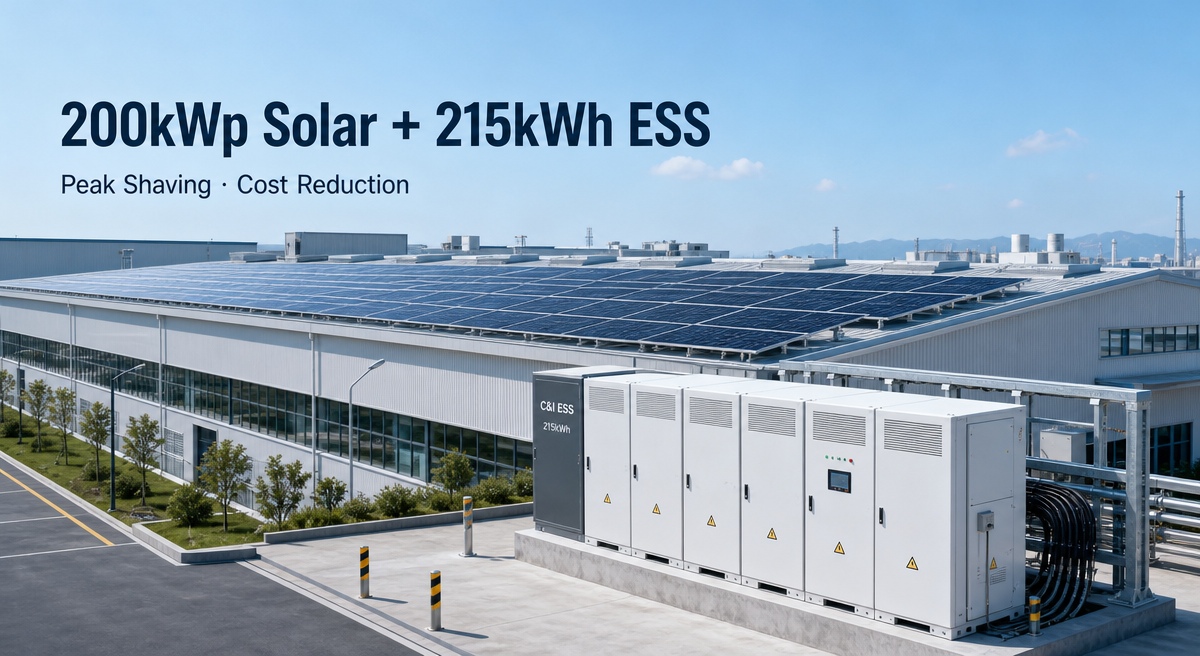

200kWp Solar + 215kWh Deye ESS

For Factory Peak Shaving & Energy Cost Reduction

Product Overview

Factories and industrial facilities often face high electricity demand during production hours, making peak demand management an important part of energy cost control.

Key Benefits

Peak Shaving

Reduce grid demand during selected high-load periods.

Higher Solar Self-Consumption

Use solar generation directly and store surplus energy for later periods.

Energy Cost Management

Shift stored energy toward periods with higher electricity costs where local tariffs support time-of-use operation.

Flexible PV Sourcing

Choose suitable Tier-1 modules from LONGi, JA Solar, Trina Solar or Canadian Solar according to project requirements and current supply.

Scalable Architecture

The Deye MS-G(S)215 series supports parallel configurations for larger C&I projects.

PV Module Options

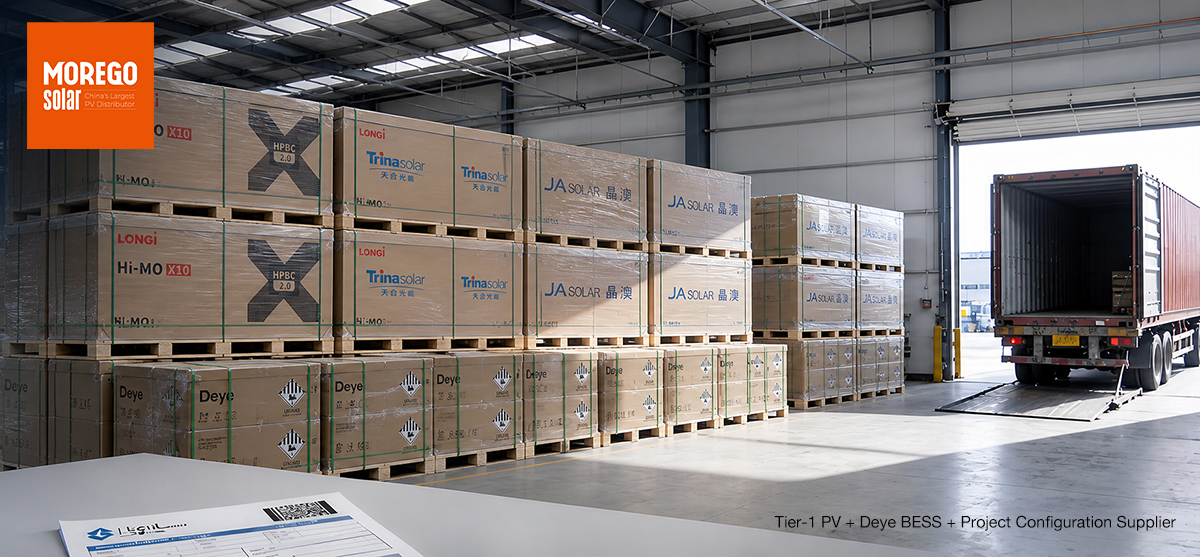

MoregoSolar can match the system with current available modules from:

LONGi | JA Solar | Trina Solar | Canadian Solar

PV module power and quantity should be selected according to available roof area, inverter/ESS input requirements, project location and current supply.

Brand	Series	Power Range	Module Type
LONGi	Hi-MO X10 Scientist	640-665W	Bifacial
LONGi	Hi-MO X10 Guardian	640-665W	Bifacial, Anti-Dust / Anti Glare / Light Design / Fire-Resistant
Trina Solar	Vertex N Series	630-650W, 725-745W	TOPCon, Bifacial
JA solar	DeepBlue 5.0	645-655W	TOPCon, Bifacial
JA solar	DeepBlue 4.0	620-650W, 720-745W	TOPCon, Bifacial
Canadian Solar	TopBiHiKu 7	720-725W	TOPCon, Bifacial
Canadian Solar	TopBiHiKu 6	620-645W	TOPCon, Bifacial

This MoregoSolar solution combines Tier-1 solar modules from LONGi, JA Solar, Trina Solar or Canadian Solar with the Deye MS-GS215-2H3 C&I Energy Storage System.

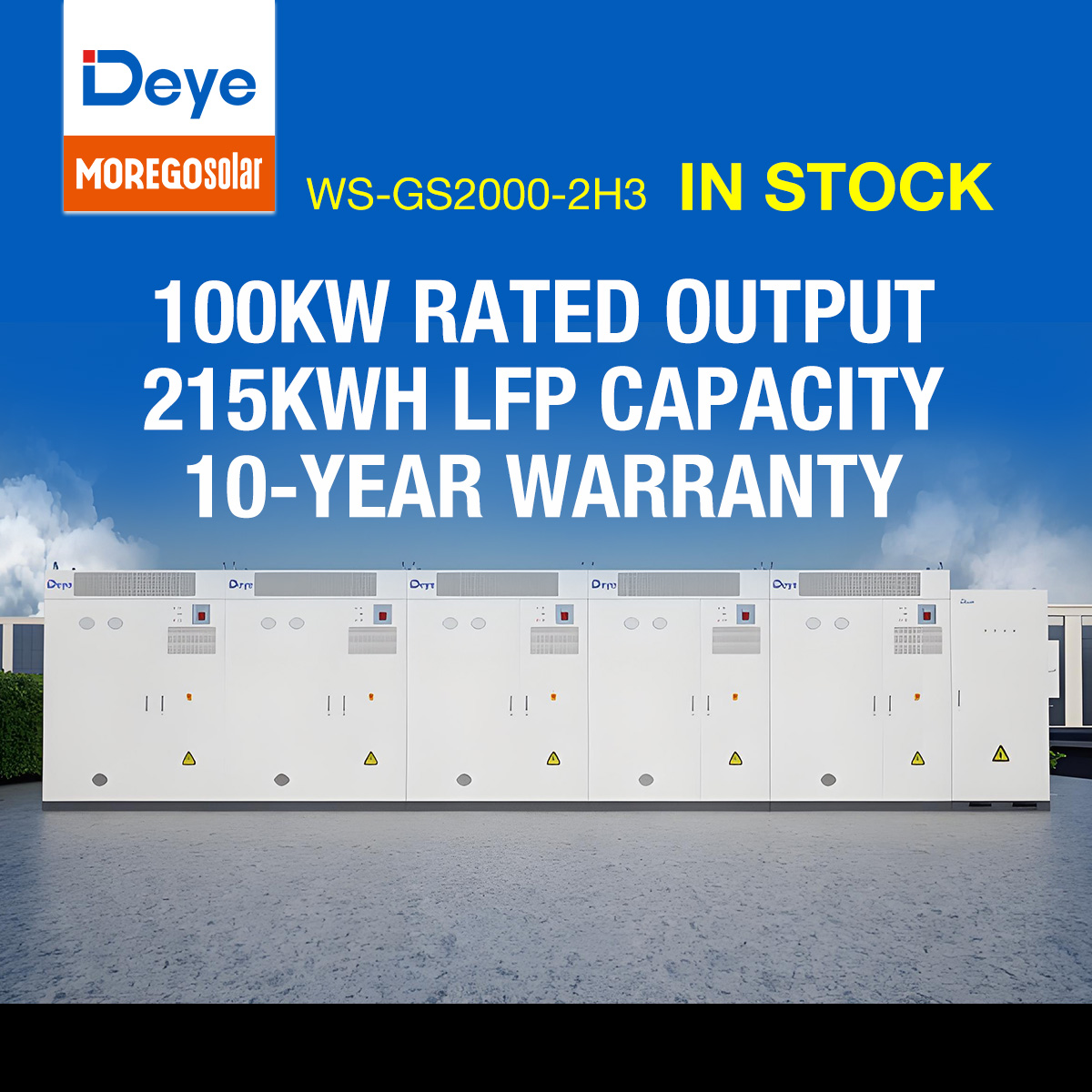

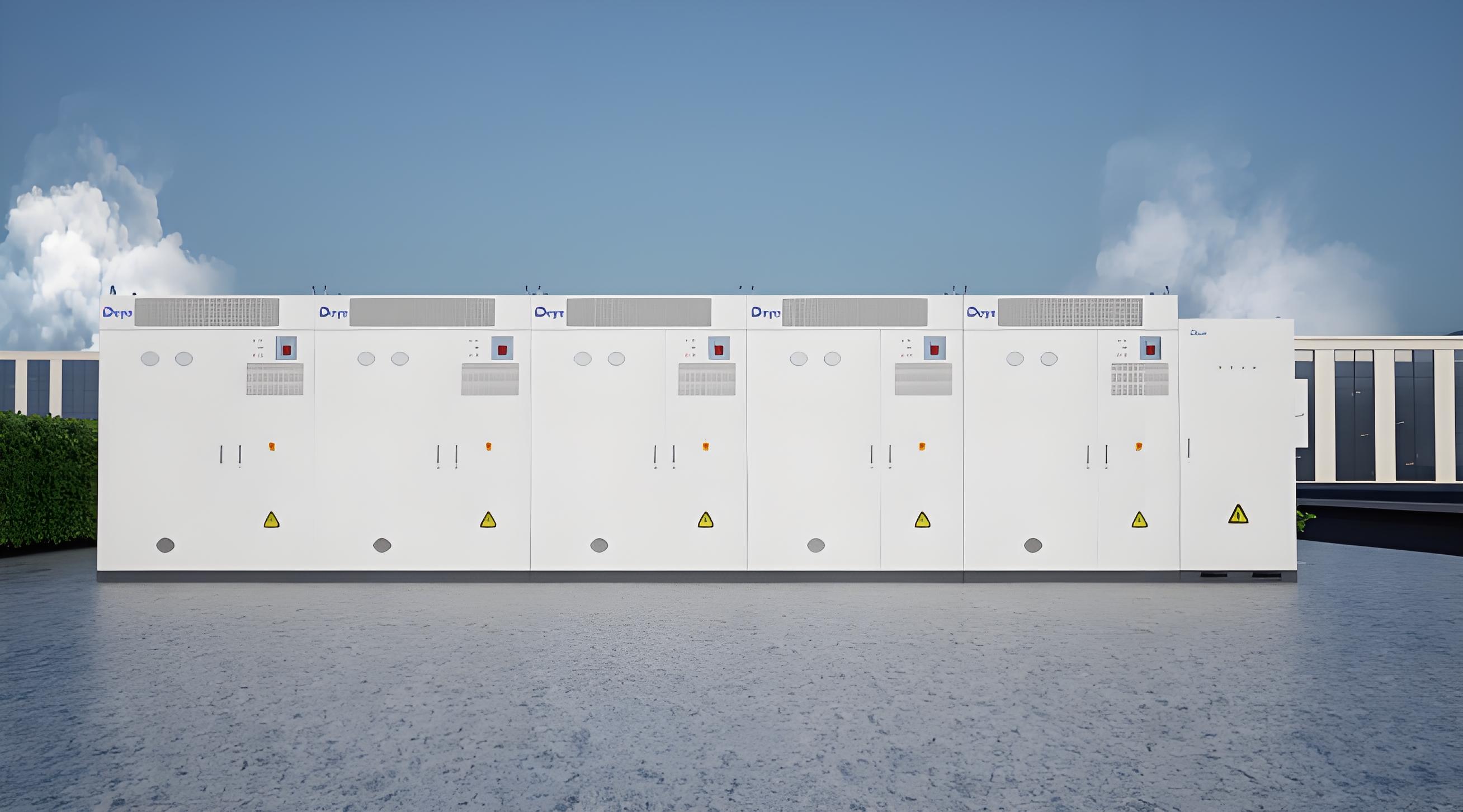

The Deye MS-GS215-2H3 provides 100 kW AC output, 215 kWh usable energy and up to 200 kWp PV input, providing a practical platform for medium-sized factories and commercial facilities.

Solar PV supplies daytime loads directly, while surplus solar energy can be stored for later use. The battery can also be used for peak shaving, load shifting and selected backup applications according to the project's operating strategy.

Recommended System Configuration:

Item	Recommended Configuration
PV Capacity	Up to 200 kWp
Battery Energy	215 kWh
ESS Power	100 kW
Deye ESS	MS-GS215-2H3
PV Module Brands	LONGi / JA Solar / Trina / Canadian Solar
System Type	C&I Solar + ESS
Grid	3-Phase
Main Applications	Peak Shaving / Self-Consumption / Load Shifting / Backup
Market	Africa / Southeast Asia / Middle East / Latin America

FAQ 1: Can I use LONGi instead of JA Solar?

A: Yes. The PV side can be configured with LONGi, JA Solar, Trina Solar or Canadian Solar modules according to project requirements.

FAQ 2: Is this system suitable for a factory?

A: Yes. It is designed around C&I applications including peak shaving, self-consumption and energy shifting.

FAQ 3: Can the battery capacity be increased?

A: Yes. Larger projects can use multiple Deye ESS units subject to system design and local requirements.

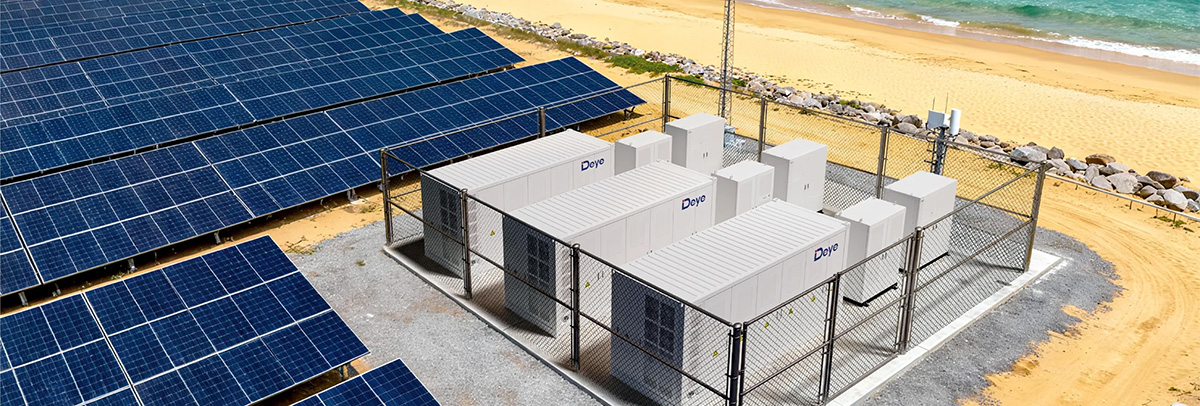

FAQ 4: Can this system work with an existing diesel generator?

A: A hybrid PV + ESS + diesel configuration can be engineered for suitable projects.

FAQ 5: How should the system be sized?

A: Final sizing should be based on the site's load profile, peak demand, tariff structure, solar resource and backup requirements.
