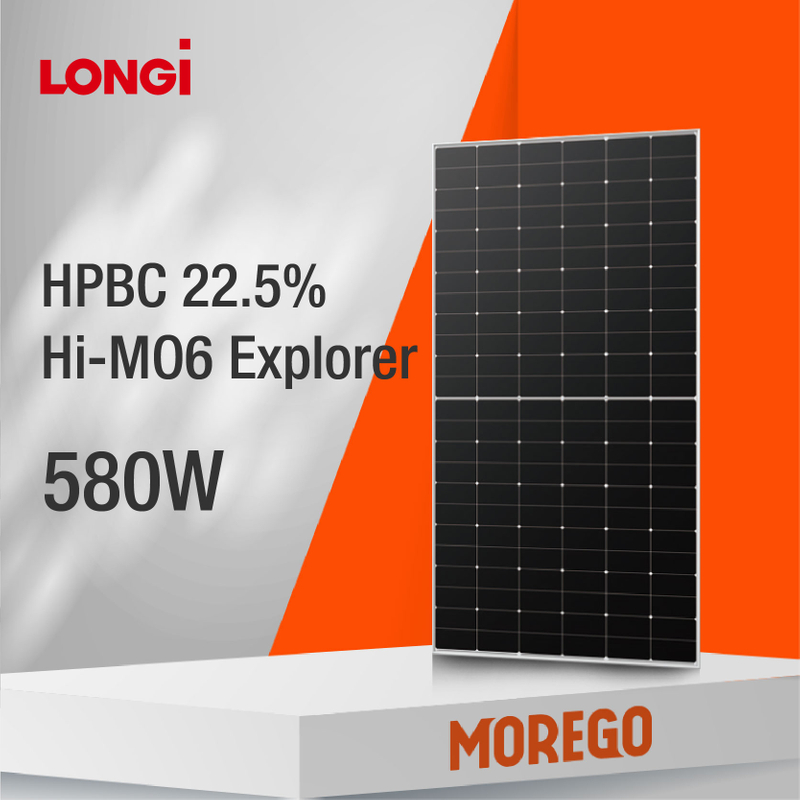

LR5-72HTH 570-590M
LONGI
| MECHANICAL DATA | |||
| Module Dimensions | 2256*1133*30mm | ||
| Weight | 27.2kg | ||
| Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass | ||
| Junction-Box | IP68, three diodes | ||
| Cables | 4.0mm² , 300mm in length | ||
| Cell Orientation | 144cells(6*24) | ||
| ELECTRICAL CHARACTERISTICS | ||||
| Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w) | ||||
| Model | LR5-72HTH-570 | LR5-72HTH-575 | LR5-72HTH-580 | LR5-72HTH-585 |
| Max. Power | 570 | 575 | 580 | 585 |
| Open Circuit Voltage | 51.91 | 52.06 | 52.21 | 52.36 |
| Short Circuit Current | 14.07 | 14.14 | 14.20 | 14.27 |
| Max. Power Voltage | 43.76 | 43.91 | 44.06 | 44.21 |
| Max. Power Current | 13.03 | 13.10 | 13.17 | 13.24 |
| Efficiency² | 22.1 | 22.3 | 22.5 | 22.6 |
| MECHANICAL DATA | |||
| Module Dimensions | 2256*1133*30mm | ||
| Weight | 27.2kg | ||
| Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass | ||
| Junction-Box | IP68, three diodes | ||
| Cables | 4.0mm² , 300mm in length | ||
| Cell Orientation | 144cells(6*24) | ||
| ELECTRICAL CHARACTERISTICS | ||||
| Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w) | ||||
| Model | LR5-72HTH-570 | LR5-72HTH-575 | LR5-72HTH-580 | LR5-72HTH-585 |
| Max. Power | 570 | 575 | 580 | 585 |
| Open Circuit Voltage | 51.91 | 52.06 | 52.21 | 52.36 |
| Short Circuit Current | 14.07 | 14.14 | 14.20 | 14.27 |
| Max. Power Voltage | 43.76 | 43.91 | 44.06 | 44.21 |
| Max. Power Current | 13.03 | 13.10 | 13.17 | 13.24 |
| Efficiency² | 22.1 | 22.3 | 22.5 | 22.6 |
