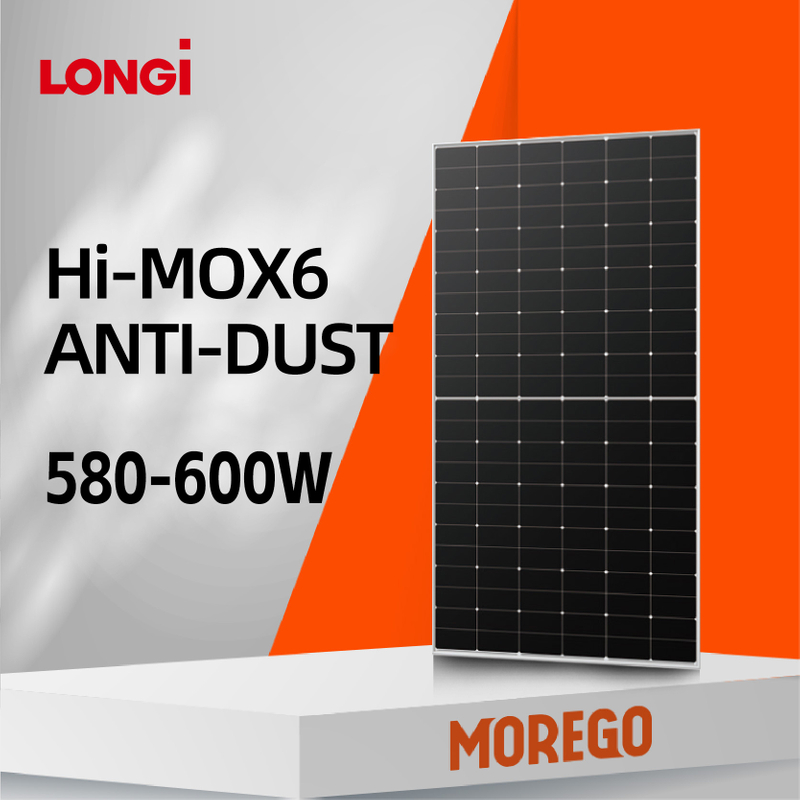

LR5-72HTHF 580~600M
LONGI
Availability: | |
---|---|
MECHANICAL DATA | |||
Module Dimensions | 2278*1134*30mm | ||
Weight | 27.8kg | ||
Glass | Single glass, 3.2mm coated tempered glass | ||
Junction-Box | IP68, three diodes | ||
Cables | 4mm2, positive 400 / negative 200mm, length can be customized | ||
Cell Orientation | 144cells(6*24) |
ELECTRICAL CHARACTERISTICS | |||
Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w) | |||
Model | LR5-72HTH-590 | LR5-72HTH-595 | LR5-72HTH-600 |
Max. Power | 590 | 595 | 600 |
Open Circuit Voltage | 52.51V | 52.66V | 52.81V |
Short Circuit Current | 14.33A | 14.40A | 14.46A |
Max. Power Voltage | 44.36V | 43.51V | 44.66V |
Max. Power Current | 13.31A | 13.37A | 13.44A |
Efficiency² | 22.8% | 23.0% | 23.2% |
MECHANICAL DATA | |||
Module Dimensions | 2278*1134*30mm | ||
Weight | 27.8kg | ||
Glass | Single glass, 3.2mm coated tempered glass | ||
Junction-Box | IP68, three diodes | ||
Cables | 4mm2, positive 400 / negative 200mm, length can be customized | ||
Cell Orientation | 144cells(6*24) |
ELECTRICAL CHARACTERISTICS | |||
Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w) | |||
Model | LR5-72HTH-590 | LR5-72HTH-595 | LR5-72HTH-600 |
Max. Power | 590 | 595 | 600 |
Open Circuit Voltage | 52.51V | 52.66V | 52.81V |
Short Circuit Current | 14.33A | 14.40A | 14.46A |
Max. Power Voltage | 44.36V | 43.51V | 44.66V |
Max. Power Current | 13.31A | 13.37A | 13.44A |
Efficiency² | 22.8% | 23.0% | 23.2% |
