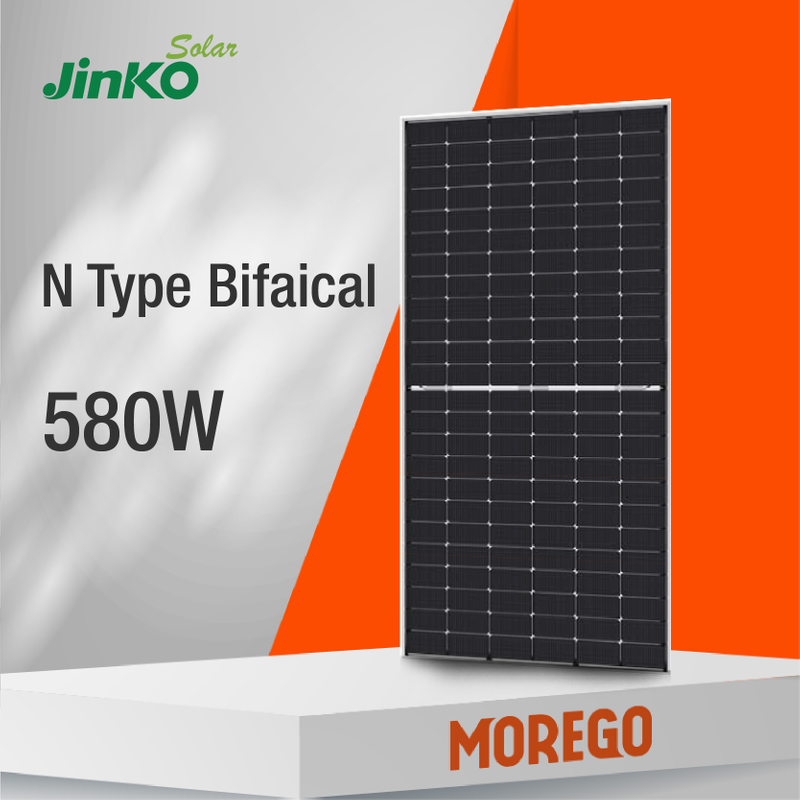

JKM570-580N-72HL4-BDVP
Jinko solar
| MECHANICAL SPECIFICATION | |
| Module Dimensions | 2278mm x 1134mm x 30mm |
| Weight | 28kg±3% |
| Cell | 2 x 72 monocrystalline cells |
| Junction Box | IP68 Rated |
| Cable | TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length |
| ELECTRICAL CHARACTERISTICS | ||||
| Minimum performance at standard test conditions,stc1 (power tolerance -0~+5w) | ||||
| Model | JKM575N-72HL4-V | JKM580N-72HL4-V | JKM585N-72HL4-V | |
| Max. Power | Pmax | 575W | 580W | 585W |
| Open Circuit Voltage | Voc | 51.07V | 51.21V | 51.47V |
| Short Circuit Current | Isc | 14.25A | 14.31A | 14.37A |
| Max. Power Voltage | Vmp | 50.88V | 51.02V | 51.16V |
| Max. Power Current | Imp | 14.39A | 14.47A | 14.55A |
| Efficiency² | η | 22.26% | 22.45% | 22.65% |
| MECHANICAL SPECIFICATION | |
| Module Dimensions | 2278mm x 1134mm x 30mm |
| Weight | 28kg±3% |
| Cell | 2 x 72 monocrystalline cells |
| Junction Box | IP68 Rated |
| Cable | TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length |
| ELECTRICAL CHARACTERISTICS | ||||
| Minimum performance at standard test conditions,stc1 (power tolerance -0~+5w) | ||||
| Model | JKM575N-72HL4-V | JKM580N-72HL4-V | JKM585N-72HL4-V | |
| Max. Power | Pmax | 575W | 580W | 585W |
| Open Circuit Voltage | Voc | 51.07V | 51.21V | 51.47V |
| Short Circuit Current | Isc | 14.25A | 14.31A | 14.37A |
| Max. Power Voltage | Vmp | 50.88V | 51.02V | 51.16V |
| Max. Power Current | Imp | 14.39A | 14.47A | 14.55A |
| Efficiency² | η | 22.26% | 22.45% | 22.65% |
